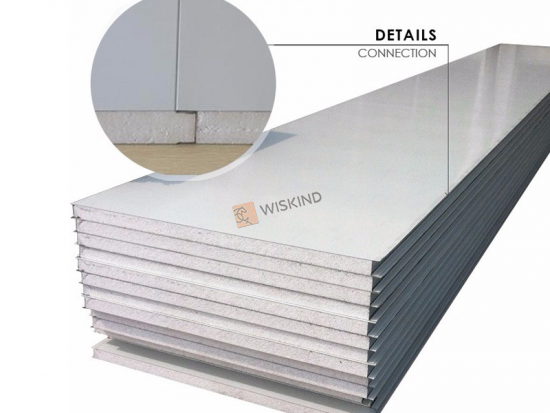

Lightweight EPS Sandwich Panel for Metal Wall System


In order to meet the higher fire-proof requirement of buildings, Wiskind has launched the high-quality EPS sandwich wall panel. The product uses high-quality water-proof EPS as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.


  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 Square Meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

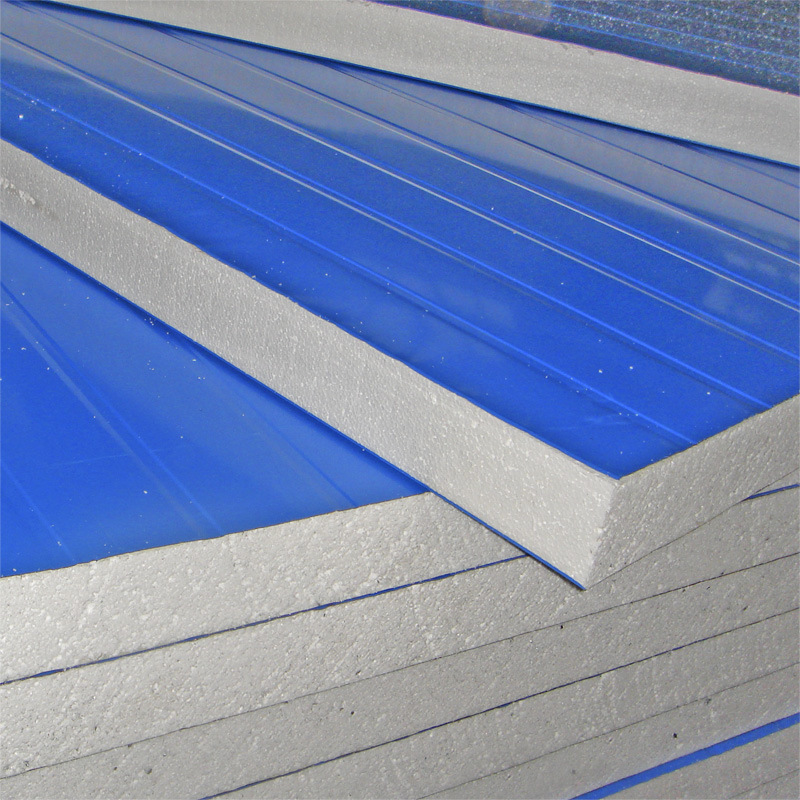

Lightweight EPS Sandwich Panel for Metal Wall System


EPS Specification

Material Category: Organic insulation material

Combustion Performance: B2, extinguish right after being deviated from fire

Heat Conductivity Coefficient: 0.042

Oxygen Index: ≤30%

Density: 8-20kg/m³

Temperature Endurance: - 40-+ 90℃

Water Absorption:≤2%

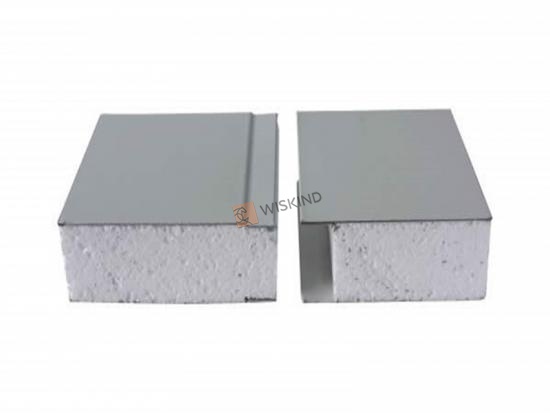

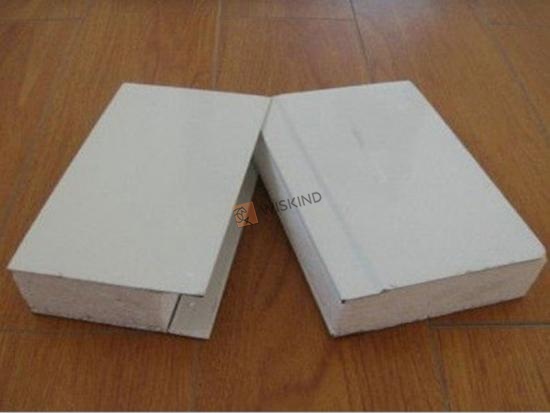

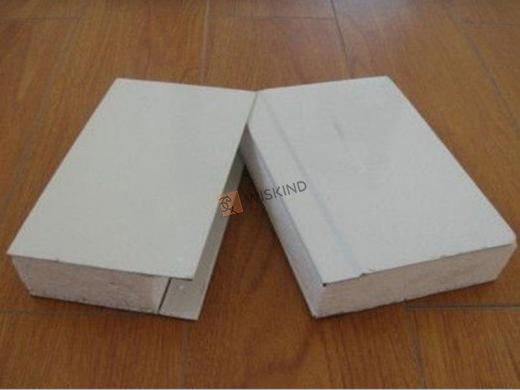

950mm EPS Wall Panel


Product Parameters

Brand of steel plates:

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates:

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates:

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates:

0.4mm-0.6mm.

Thickness ofcore:

50/75/100/150mm

Density of core:

10/12/14/16/18kg/m³

Effective width:

950mm/1150mm

Panel Length:

According to customers’ request


Performance Description

1.Water Prevention:high-quality water-proof EPS.

2.Thermal Insulation:the low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.

3.Sound insulation:the sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.

4.Solid:the panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.

5.Beautiful Design:bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.

6.Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
