1 Product Parameters:
Steel Outer
Layer
|
Common T (mm)
|
Outer Panel Specs 0.6-0.8(Coated Steel Panel)
|
|
|
Inner Panel Specs 0.4-0.7(coated steel panel)
|
|
Common L (mm)
|
≤12,000
|
|
Common W (mm)
|
500-1,100
|
|
Coating
|
PVDF / SRP / HDP / PE
|
Insulation Core
|
Core Material
|
High-density thermal insulation, fireproof and
|
|
|
water-repellent rock wool/Glass Wool
|
|
VW (kg/m³)
|
Rock Wool: ≥120/Glass Wool: ≥64/PU (Edge
Sealing):≥38
|
|
Thickness (mm)
|
50-150
|
|
TC (w/m·k)
|
Rock Wool: ≤ 0.043 / Glass Wool: ≤ 0.042
|
|
Fire Rating
|
Rock Wool: Class A / Glass Wool: Class A
|
Process
|
Profile
|
2-sided joint-Male-Female Joint, PU Edge Sealing
|
|
Production Process
|
Continuous Production Process
|
|

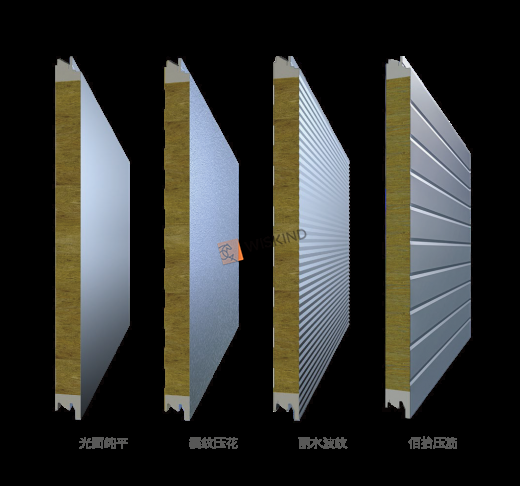

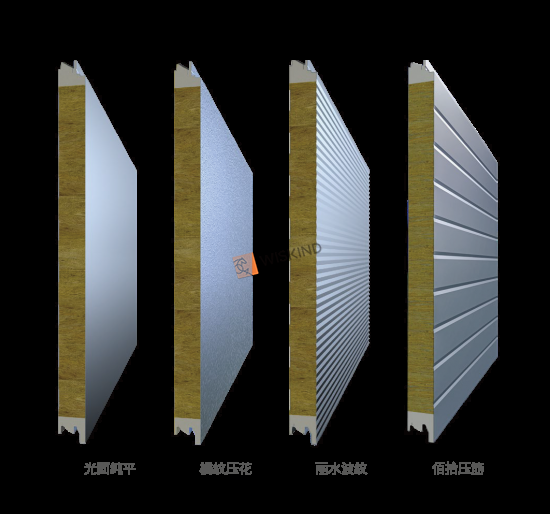

Surface Texture
|
Flat / Embossed Pattern/ Micro Ripple / V8 RIPPLE
|
Center Trim Treatment
|
|
Metal Snap-in Cover Plate
|
2 Product Characteristics:
Interlaced double support joint
- New generation of interlaced double support joint for improved installation progress and compactness
Higher strength & super wind resistance
-Shorter screw overhang, so the moment acting on the support is reduced under the same wind load
-The new generation 3D gasket of
Wiskind helps improve the bearing capacity of the steel panel at the screw and the strength of the joint
Airtightness / Watertightness
-The closed cavity water resistant structure functions as a rain screen to avoid water seepage and improve the water-/
-airtightness
Interlaced joint structure leads to better air tightness
Multi-purpose PU edge sealing
-Thermal Insulation: Hard PU foam is used to fill the installation side of the panel, which effectively blocks heat conduction and improves thermal insulation performance
-High Strength: Increased structural and joint strength to prevent deformation
-Watertightness: PU edge
sealing increases air tightness, effectively blocking rain leakage, and preventing the core material from strength reduction due to moisture absorption. The thermal
conductivity is quite low, privide more durable insulation performance for panels and systems
1. Flame retardant performance grade
reaches A class, which improves the overall fire performance of the steel
building.
2. Polyurethane is used as the filling on
both sides of the mouth, which effectively reduces the heat conduction and cuts
off the water leakage, prevents the fire proof cotton from reducing the
strength and insulation performance due to moisture absorption, and makes the
fire insulation performance more durable.
3. High capacity and heavy core material
make the thermal insulation performance better.
4. Hard polyurethane foam filling is
adopted on both sides of the mouth to enhance the overall strength and prevent
the deformation of the mouth.
5. Fire cotton 90 degrees of rotation, so
that the cotton fiber and the board surface into a vertical state, enhance the
compressive tensile strength of more than 50%.
3 Product Certifications:
4 Product Project Cases:
--Colorpod Product Cases of Samsung Semiconductor
--Colorpod Product Cases of Qingdao Haier Drum Washing Machine Intelligent Production Line Base
--Colorpod Product Cases of 3M Materials Technology (Suzhou) Co., Ltd.
--Colorpod Product Cases of Weifang Goer Electronics Co., Ltd.
4 Wiskind Facade Systems
Wiskind's metal exterior wall products are the most original in terms of
material structure, system design, and manufacturing process. Its advanced
prefabricated building design concept allows the advantages of standardized
design, factory processing and modular construction to be fully utilized. The
excellent quality and unique style of Wiskind's metal exterior wall products not only fulfill the functional
requirements of building comfort, environmental protection and energy saving,
but also endow buildings with unique aesthetic effects.
•Sandwich Panel System
•Corrugated Steel Sheet System
•Lining plate system
