30-300mm PU Sandwich Panel for Cold Storage System

Wiskind PU/PUR/PIR Sandwich Panel for Walk-in Cold Room, is A new composite panel which takes light rigid polyurethane foams as the core materials and colorful steel plates or stainless steel plates as the surface material.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 Square Meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

30-300mm PU Sandwich Panel for Cold Storage System


Product Description:

Product Name 30-300mm PU Sandwich Panel for Cold Storage System

Brand of steel plates

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates

0.4mm-0.6mm.

Thickness ofcore

30-300mm.

Density of core

40-50kg/m³

Effective width

930/1000mm

Panel Length

According to customers’ request

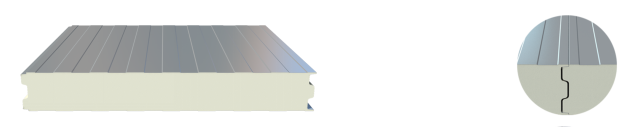

   50mm PIR Panel for Cold Room

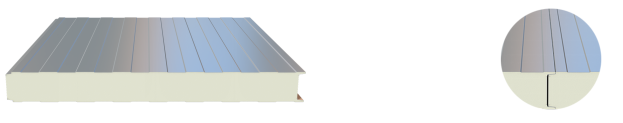

75mm PUR Panel for Cold Room

Product Advantages:

1.Low thermal conductivity≤0.020. It has a high-efficient thermal insulation effect.

2.High percentage of close area ≥90% and low moisture absorption ≤3%. It has an excellent waterproof effect.
3.It adopts the unique concave-convex type which improves the tightness of the socket of the panel. High viscosity, high strength≥220 and good load resistance performance≥2450.
4.Excellent flame resistance level B.
5.Wide scope of temperature resistance.

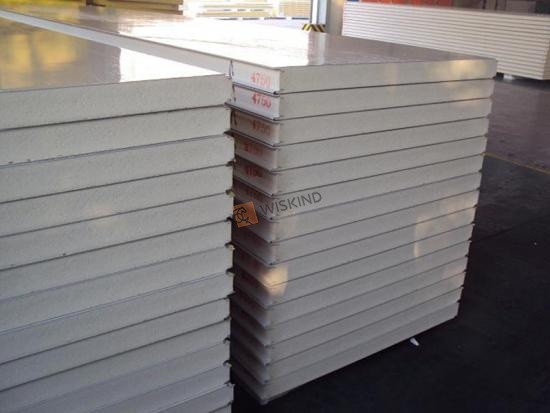

PU Sandwich Panel for Cold Storage
