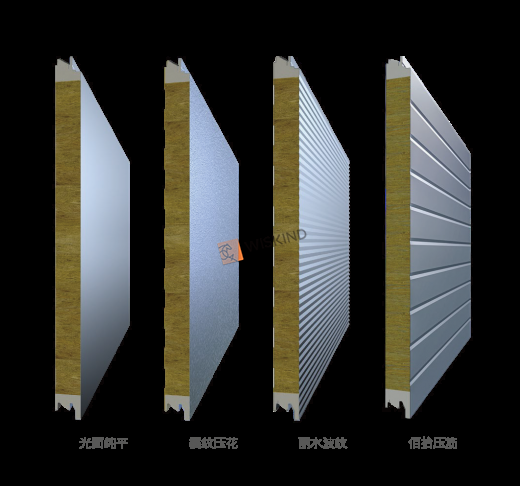

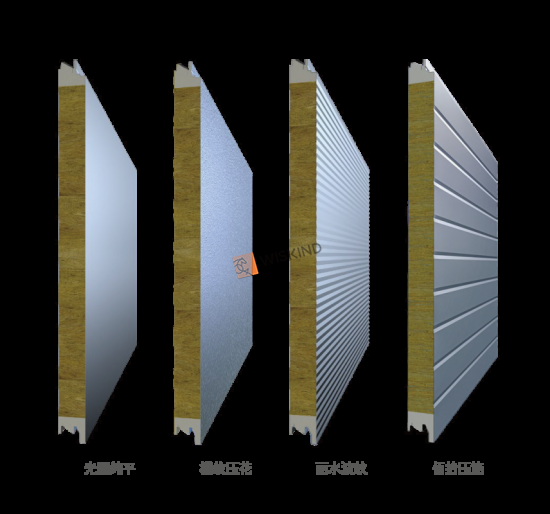

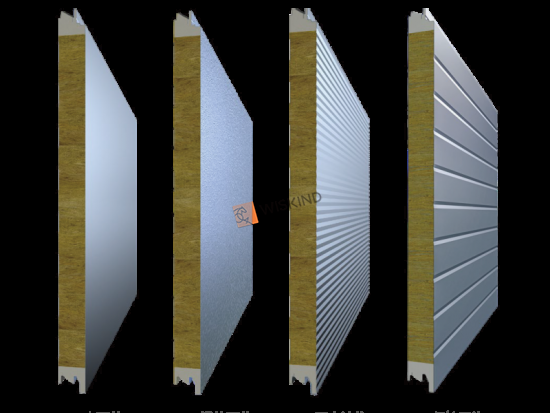

50-150mm Thickness Rockwool+PU Sandwich Panel For Metal Wall Cladding System

Rockwool+PU sandwich panels which adopt high-quality colorful coated steel plates, high-quality waterproof rock wool as core materials. The thermal-insulated and fireproof product is excellent building cladding.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

50-150mm Thickness Rockwool+PU Sandwich Panel For Metal Wall Cladding System


Product Introduction

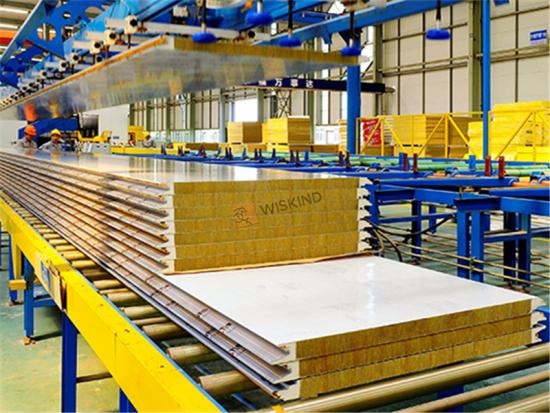

With experience in independent research and development of the metal cladding system in the past over 40 years, Wiskind has launched the Color Pod™, Rockwool+PU Sandwich Panel. Its tongue-and-groove is filled by high-density rigid PU foam, goes through high-pressure foaming solidification and 90°automatic dense wool arrangement and realizes forming through super long precision double-track control. Due to its thermal insulated, fireproof and durable performance, convenient installation method and elegant appearance, it has rapidly become a main cladding system material for industrial buildings.


Product Parameters

Brand of steel plates:

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates:

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates:

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates:

0.4mm-0.8mm.

Thickness of core:

50mm/75mm/80mm/100mm

Density of core:

Rockwool:≥120kg/m³; Glasswool: 64kg/m³; PU: 40-50kg/m³

Effective width:

1000mm

Panel Length:

According to customers’ request

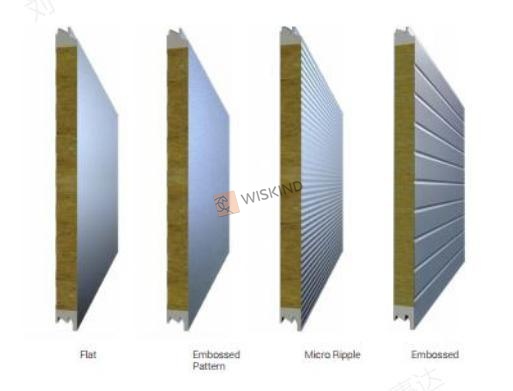

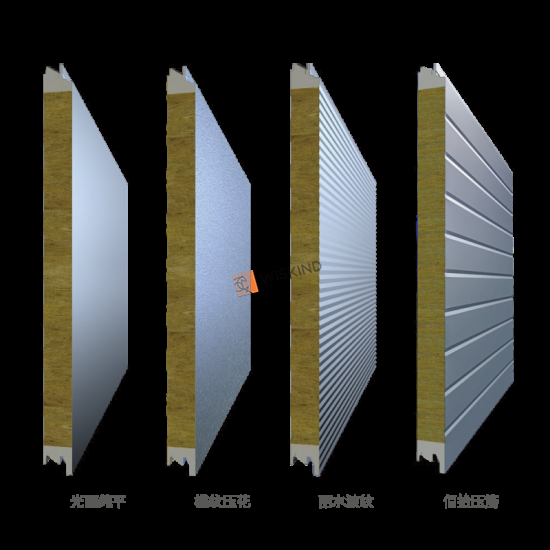

 Rockwool+PU Sandwich Panel

Performance Description

1. The flame resistance level reaches the level A, which has improved the overall fireproof performance of steel buildings.

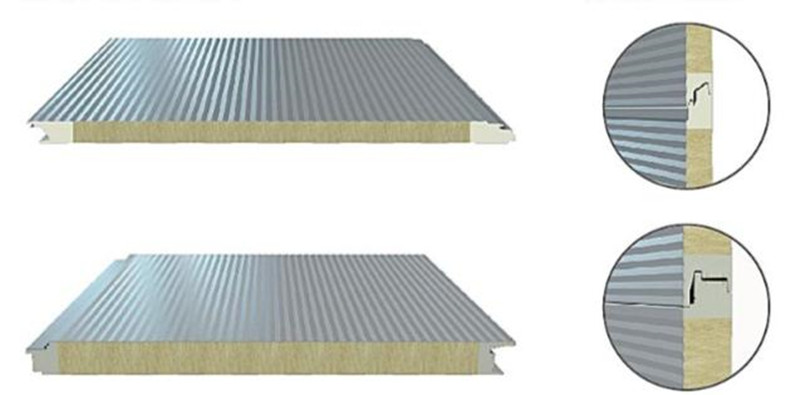

2. The two edges of the tongue-and-groove is filled with polyurethane foams, which effectively stops heat conduction and rain leakage, prevents reduction of strength and thermal insulation performance caused by moisture absorption and makes fireproof and thermal insulation performance more durable.

3. The high volumetric weight core material guarantees better thermal insulation performance (the volumetric weight of rock wool core material ≥ 120kg/m3, the volumetric weight of glass wool ≥ 64kg/m3).

4. The two edges of the tongue-and-groove is filled with rigid polyurethane foams to improve the overall strength and prevent deformation of the tongue-and-groove.

5. The fireproof wool rotates 90°so that the wool fiber is perpendicular to the panel and the strength of pressure and tension resistance increases by 50%.

Leave a message
If you are interested in any of our products, please feel free to contact us. We are looking forward to your cooperation.

Related Products

Insulated Polyurethane Sandwich Panel

Insulated Polyurethane Sandwich Panel For Metal Wall Cladding System

PU/PUR/PIR sandwich composite panel is a commonly used composite building material. The steel plates as outer skins offer this composite panel great strength, and the PU insulation material provides it with great thermal insulation, which is the best solution to energy conservation of buildings.

50mm Polyurethane Sandwich Panel

50mm75mm100mm Polyurethane Sandwich Panel For Metal Wall Cladding System

As a green, environmental-friendly, light and high-strength new building cladding material, in order to improve the thermal insulation effect of buildings and develop low-carbon economy, Wiskind has actively responded to the national requirements on energy conservation and emission reduction, introduced advanced Italian PUMA continuous production lines and production technologies in Europe, realized professional and large-scale production, and launched the PU/PUR/PIR sandwich composite panels with European quality and green environmental protection.

Rockwool+PU Sandwich Panel

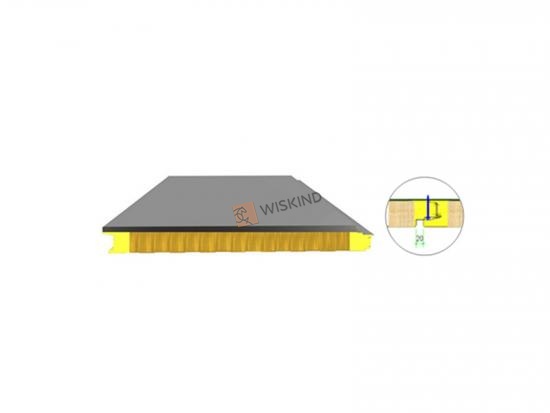

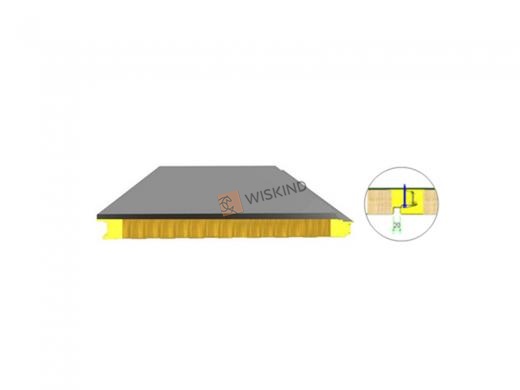

Four Tongue-and-Groove Rockwool+PU Sandwich Panel For Metal Wall Cladding System
