/50mm75mm100mm Polyurethane Sandwich Panel For Metal Wall Cladding System

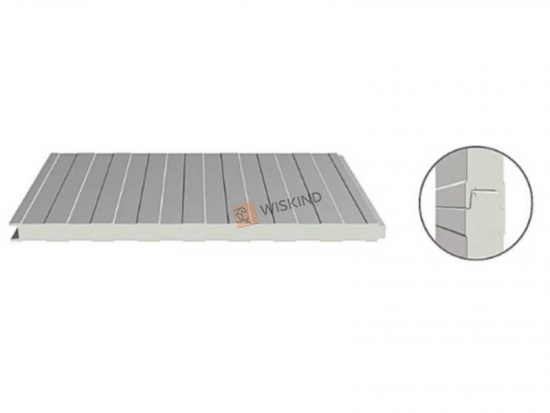

50mm75mm100mm Polyurethane Sandwich Panel For Metal Wall Cladding System

As a green, environmental-friendly, light and high-strength new building cladding material, in order to improve the thermal insulation effect of buildings and develop low-carbon economy, Wiskind has actively responded to the national requirements on energy conservation and emission reduction, introduced advanced Italian PUMA continuous production lines and production technologies in Europe, realized professional and large-scale production, and launched the PU/PUR/PIR sandwich composite panels with European quality and green environmental protection.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 Square Meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

50mm75mm100mm Polyurethane Sandwich Panel For Metal Wall Cladding System

Introductio

PU/PUR/PIR Specification

Material Category: Organic insulation material

Combustion performance: B1 or B2

Heat Conductivity Coefficient: ≤0.023/≤0.02

Oxygen Index: ≤30%

Density: 40-43 / 40-50kg/m³

Temperature Endurance: 40-43 / 40-50℃

Water Absorption: ≤2%

50mm PU Wall Panel


Product Parameters

Brand of steel plates:

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates:

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates:

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates:

0.4mm-0.8mm.

Thickness of core:

50mm/75mm/100mm.

Density of core:

40-50kg/m³

Effective width:

1000mm

Panel Length:

According to customers’ request


Performance Description

1.High efficiency and energy conservation:the excellent thermal insulation performance reduces building energy consumption and reduces costs on air-conditioning equipment.

2.Beautiful facade:the hidden nail connection guarantees hidden screws and more beautiful building walls.

3.Solid and durable:high-strength panels and excellent mechanical properties of walls.

4.Patented design:the unique double-support plug interface design ensures that walls have stronger wind pressure-resistant capacity and are solider.

5.Multiple choices:multiple panel types.
