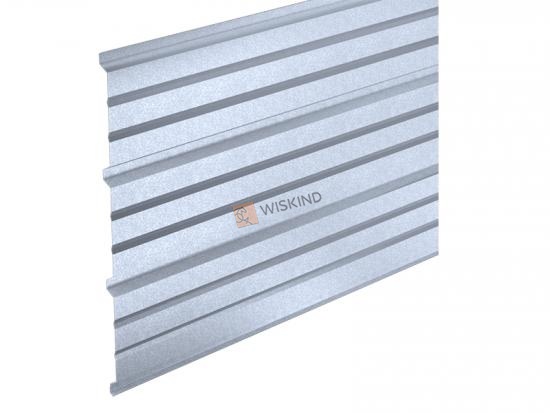

780 Big Wave Wall Panel Corrugated Steel Wall Sheets
Wiskind 780 corrugated steel wall sheets is mainly used for wall panels, generally horizontally installed, beautiful in appearance and three-dimensional.
Payment:
TT/LCProduct Origin:
Shandong Province, ChinaColor:
Customized as your requestMOQ:
500 square metersShipping Port:
Qingdao Port, ChinaLead Time：
20-30s days after receiving your deposit1 Product Parameters：
|
Name of Product |
WP3 |
|
Length(mm) |
1030 |
|
Thickness(mm） |
0.53-0.8 |
|
Color |
Customed |
|
Material |
Color-coated coil, aluminum-zinc-magnesium steel plate, aluminum alloy plate, stainless steel plate |
2 Product Characteristics：
1,The lap joint between two ribs is provided with a cavity to block water seepage with a great rainproof performance.
2,The 32mm high ribs are matched with large waves of the same width, and the angle between the main rib and the wave trough is as large as 61 degrees, with crisp wall lines and an expressive facade, thus suitable for large-scale buildings.
3,Pre-punched screw hole at the end.The raw material is the aluminum-zinc coated steel panel, with a thickness of 0.53-0.8mm and a strength of 300/350MPa.
4,High-strength material of above 500MPa is available.
5,Fast installation, economical and functional.
3 Product Production Process：
4 Product Production Machines：
-- Oblique slitting machine
5 WP3 Project Cases—A Steel Symphony of Light And Shadow Changes：
--WP3 Product Cases of Zhangqiu Haitai New Materials Co., Ltd.
The lightweight steel plate is rolled and cold-formed to form a rich concave and convex façade, which glows with different levels of light and shadow changes under the sun, redefining the most original industrial attributes of the building.
The powerful lines and changing depths of the board surface present a sense of flowing rhythm under the steel forging. The front, reverse, horizontal and vertical paving blend with each other, and together they play a steel symphony with varied light and shadow.
Wiskind 780 corrugated steel wall sheets is mainly used for wall panels, generally horizontally installed, beautiful in appearance and three-dimensional.

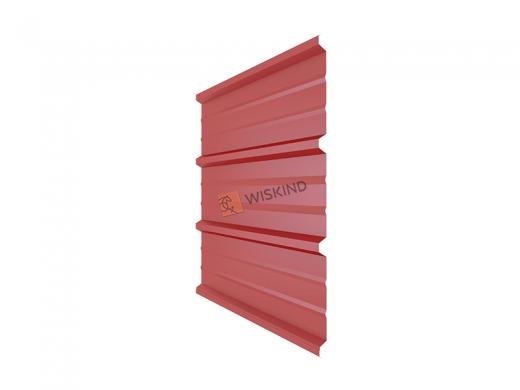

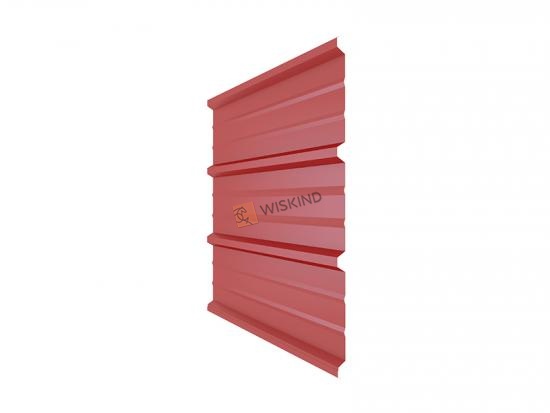

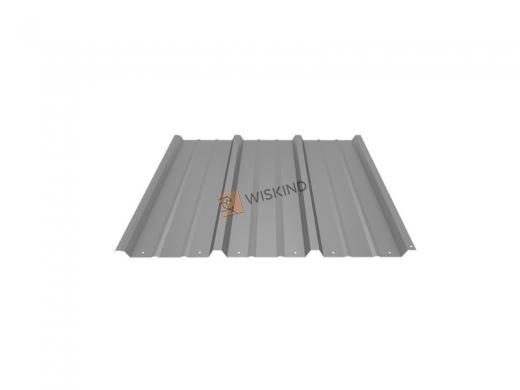

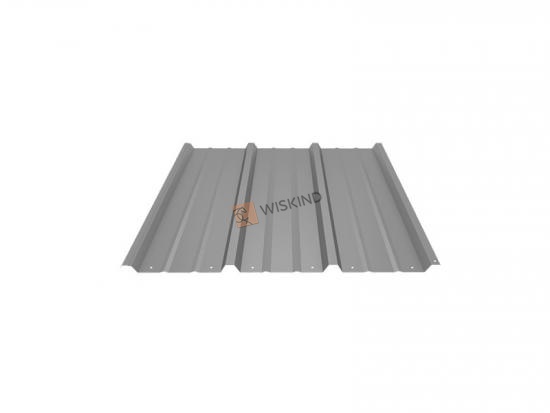

Wiskind 750 corrugated steel sheets is applicable to the roof and wall cladding system of the factory, it has high strength and can also be used for bearing.
Wiskind 900 corrugated steel sheets is more suitable for wall panels and ceiling panels. It is large in size and beautiful in appearance, and can also be used in small span roofs. And it can bring a small side, it can be used as a high-strength board.
Wiskind 992 corrugated steel sheets is a new type of wall board, semi-concealed, not easy to expose nails, beautiful appearance, strong three-dimensional effect, unique light and shadow effect, can be used in curved buildings.
