50-150mm Thickness Rock Wool Sandwich Panel For Metal Wall Cladding System

Rock wool sandwich composite panel is a commonly used composite building material. The same as other types of structural insulated panels, it is also made up of two layers of structural board and one insulation core. The steel plates as outer skins offer this composite panel great strength, and the rock wool insulation material provides it with great thermal insulation.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

50-150mm Thickness Rock Wool Sandwich Panel For Metal Wall Cladding System


Product Introduction

In order to meet the higher fire-proof requirement of buildings, Wiskind has launched the high-quality rock wool sandwich composite panel. The product uses high-quality water-proof rock wool as the core material. Through the super long precision double-track curing, the product is excellent in terms of fire prevention, thermal insulation, noise reduction and environmental protection.


Product Parameters

Brand of steel plates

Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.

Painting of steel plates

PVDF, SMP, HDP, PE; The top painting should be above 25μm.

Galvanized layer of steel plates

Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.

Thickness of steel plates

0.14mm-0.6mm.

Thickness of core

50mm/75mm/100mm/120mm/150mm.

Density of core

90/100/120kg/m³

Effective width

1000mm

Panel Length

According to customers’ request

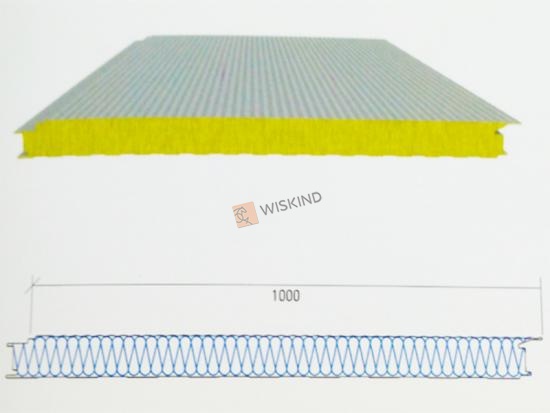

50mm Rock Wool Sandwich Panel


Performance Description

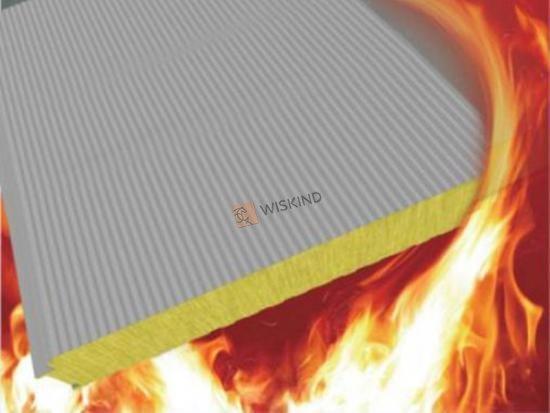

1.Fire Prevention: High-quality water-proof rock wool and class-A fire-proof performance.
2.Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
3.Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
4.Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.
5.Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
6.Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
