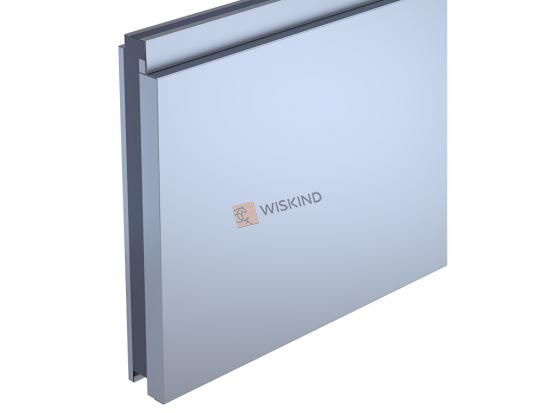

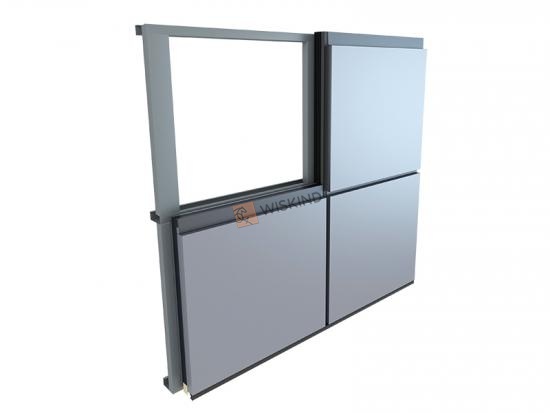

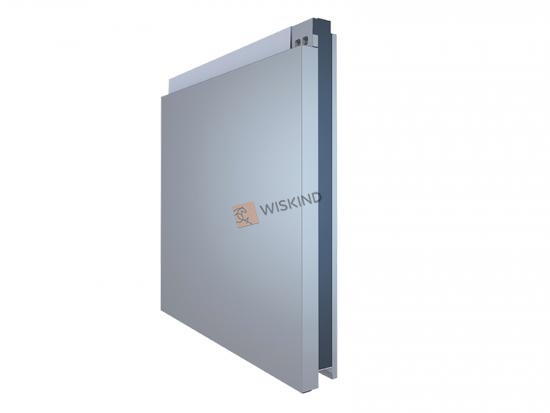

1 Product Parameters:
Steel Outer
Layer
|
Common T (mm)
|
Outer Panel Specs 1.0(Aluminum Panel)
|
|
Inner Panel Specs 0.4-0.6(Coated Steel Panel)
|
Common L (mm)
|
100-4,000
|
Common W (mm)
|
300-1,000
|
Coating
|
PVDF
|
Insulation Core
|
Core Material
|
High-density thermal insulation, fireproof and
|
|
water-repellent rock wool
|
VW (kg/m³)
|
≥ 120
|
Thickness (mm)
|
50-150
|
TC (w/m·k)
|
≤ 0.043
|
Fire Rating
|
Class A
|
Process
|
Joint
|
4-sided Joint
|
Joint Seam Outlook Width
|
20mm
|
Production Process
|
Discontinuous Production Process
|
Center Trim Treatment
|
|
Seal Strip or Sealant
|
2 Product Characteristics:
1)light, high
strength, mirror flat
The outer plate adopts aluminum magnesium
manganese plate, the density of the plate is about 2.78, compared with the
traditional color steel plate surface is lighter. We have achieved high
strength on the basis of light mass, the design load value is 2.1KN/M2, four
times more than the NATIONAL standard 0.5N/M2, the ultimate load value is
3.1KN/M2, 6 times more than the national standard. The higher the strength of
the board, the higher its flatness. Compared with traditional aluminum veneer
flatness is better.
2) fire prevention, heat preservation,
decoration
The core material is high quality rock
wool, and the fire rating is grade A non-combustible. And rock wool in all
directions closed, no cutting exposure, avoid contact with the air, each board
is an independent fire unit. The material with thermal conductivity lower than
0.12W/(M.K) in the NATIONAL standard becomes the thermal insulation material,
and the material with thermal conductivity lower than 0.05 is the efficient
thermal insulation material. Thermal conductivity of 50MM plate can reach
0.062,75MM can reach 0.043, efficient insulation. PVDF paint pre-roll coating
processing, can also process 3D art grain board and a variety of wood grain
marble grain and other boards.
3) the whole factory prefabrication,
size production, modular installation
Color screen according to the assembly
type, using the whole factory prefabricated, integrated module. Heat core
material is filled more closely to avoid construction gap and reduce building
energy consumption. The fully enclosed thermal insulation foam is tightly
attached to the panel, so that damp air is not easy to enter the panel, avoiding
condensation inside the building wall, and ensuring the service life of the
thermal insulation foam.
4) WISKIND patent binder, bond strength
3 times more than the NATIONAL standard
The national standard requires that the
bond strength is 0.06mpa, and the bond strength of the beautiful color screen
reached 0.2mpa through the test.
5) the use of WISKIND patent EPDM rubber
strip, green environmental protection, high efficiency and energy saving, no
glue pollution
EPDM rubber strip structure is waterproof,
2 cm in each horizontal and vertical seam breaks the water trough to block the
siphon effect, the vertical seam contains 8 sealing ruler, block the water
vapor to enter at the same time, the middle position of the built-in guide
trough, such as condensate water can be discharged along the guide trough, will
not erode the plate. The aging of traditional sealant erodes the surface with
rain water, resulting in plastic pollution.

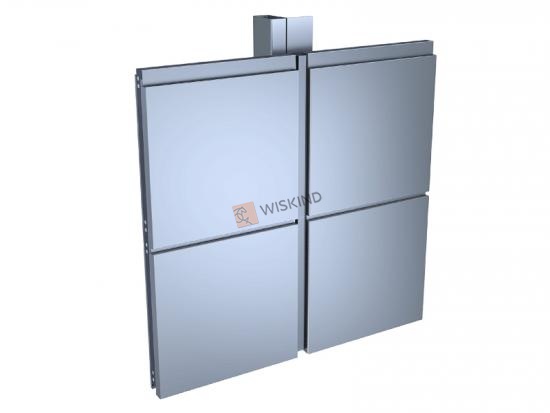

6)Any plate can be replaced separately,
convenient installation and enclosure
To avoid the loss of manpower and material
resources caused by large-scale disassembly and assembly, the separate plate
replacement is the first in the industry, which fully realizes the requirements
of new type of assembly building for the conversion of old and new kinetic
energy.
7)Supporting patent fastener system to
ensure the service life of the system
The screws are made of master's patent
screws. The drawing force test of 401 stainless steel screws is much higher
than that of South Korea and Australia screws. Pre-punch holes at the screws on
the panel surface to effectively prevent damage to the panel surface that may
be caused by on-site nailing.
8) The BIM system optimizes the
overall external wall scheme.
The automatic equipment imported from
Germany is used for processing and molding, and the precision error is
controlled by 0.1mm.
3 Product Project Case:
--COLORCURTAIN
Sandwich Façade Panel Product Cases of Boxing Super Shopping Mall
--COLORCURTAIN Sandwich Façade Panel Product Cases of Inner Mongolia Natural History Museum
--COLORCURTAIN Sandwich Façade Panel Product Cases of Dongyue Group
4 Production Equipment:
Germany Schnord bending machine, equipment
processing dimension accuracy 0.1mm, to ensure the quality.
5 Product Qualification:
Curtain wall four tests
1) Water
tightness: level 4 (5 in total)
2) Air tightness: Level 3 (4 in total)
3) Wind
pressure resistance: Level 6 (9 in total)
4) In-plane deformation performance: Level 5 (5
in total)
6 Product Knowledge:
Curtain Wall System VS Aluminium veneer system
Color curtain wall system is the use of
sandwich board composite process, the panel, back and rock wool these three
materials through high component polyurethane adhesive curing under high
temperature conditions, the composite strength to ensure that the plate itself
can meet its own weight, do not need to increase the reinforcement. The inner
and outer metal plate adopts precision mechanical rolling forming, the product
size is high precision, the block surface is large, the outer plate corner
radius is small, and the stress caused by the temperature change is fully
considered, so the flatness of the board surface is high.
The traditional aluminum veneer uses the
processing technology of folding, the precision of the product size is low, the
block surface is small, the Angle radius of the aluminum plate is large, the
stress of the flanging material is not released, the installation system is the
Angle code is fixed on the keel of the base frame by bolts, the temperature
stress is not released, resulting in the flatness of the board. Stiffeners need
to be fixed on the back of the plate to create marks on the external surface of
the fixed point.
