/84 Series Corrugated Steel Wall Panels At-will Combination, Unlimited Creativity

84 Series Corrugated Steel Wall Panels At-will Combination, Unlimited Creativity

84 Series Corrugated Steel Wall Panels is a group steel sheet with 84A,84B.84C.Through the arrangement and combination of non-equal width wave pitches, it provides a unique sense of rhythm of vertical wall panels, changing the monotonous dense line feeling of ordinary vertical veneer.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    500 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

1 Product Parameters:

Name of Product

84 Series(84A,84B,84C)

Raw material width(mm)

1000

Length(mm)

840

Thickness(mm)

0.53-0.8

Color

Customed

Material

Color-coated coil, Al-Zn-Mg steel plate, aluminum alloy plate

2 Product Characteristics:

84 Series Product Details1

The three panel types, i.e., 84A, 84B and 84C, offer different  wavelength combinations, and are available with vertical pavement.
The unique sense of rhythm produces rich visual effects with  diversified shape combinations.
The raw material is the aluminum-zinc coated steel panel, with a  thickness of 0.53-0.8mm and a strength of 300/350MPa.
High-strength material of above 500MPa is available.
Fast installation, economical and functional.
84 Series Product Details2

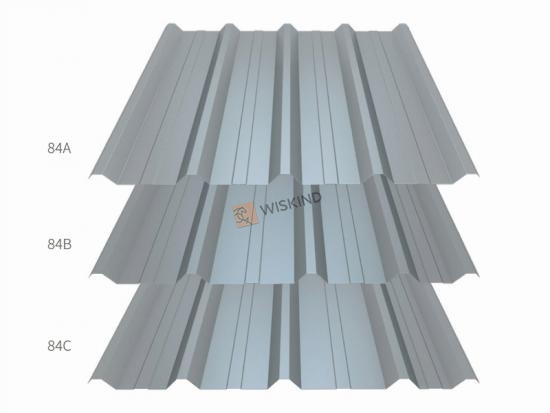

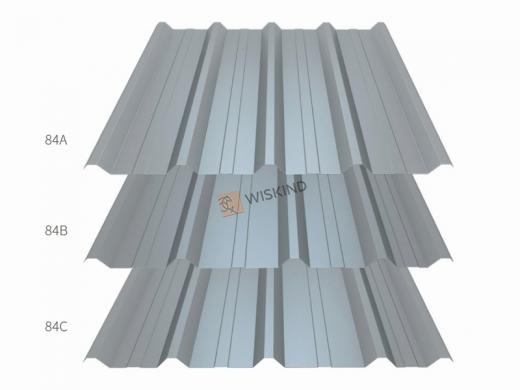

84A is a plate type yX30-210-840 with equal wave distance, 30mm rib height and 210mm wave distance.
84B and 84C are the series plate types of 84A with varying wave distances, wherein 84B is a gradual change of four wave distances (150,190,230,270), and 84C is an alternate change of three wave distances (210,270,210,150).

84 Series Product Details3

Through the arrangement and combination of unequal width wave distance, the unique rhythm of vertical wall panel is provided, and the monotonous and dense line sense of ordinary vertical veneer is changed

3 Product Loading Site:

84 Series Product Loading Site

4 84 Series Project Cases—Rhythm Wall Panel:

84 Series Product Cases For The Walls1

--84 Series Product Cases For The Walls1

84 Series Product Cases For The Walls2

--84 Series Product Cases For The Walls2
