990 Prefabricated Roof Panel Corrugated Steel Roofing Sheets

Wiskind 990 corrugated steel sheets is used for roofing panels, high wave peaks, good drainage performance. It can also be used as wall decoration.

  • Payment:

    TT/LC

  • Product Origin:

    Shandong Province, China

  • Color:

    Customized as your request

  • MOQ:

    1000 Square Meters

  • Shipping Port:

    Qingdao Port, China

  • Lead Time：

    20-30s days after receiving your deposit

Product Categories

New Products

  • Product Details

990 Prefabricated Wall Panel Corrugated Steel Wall Sheets

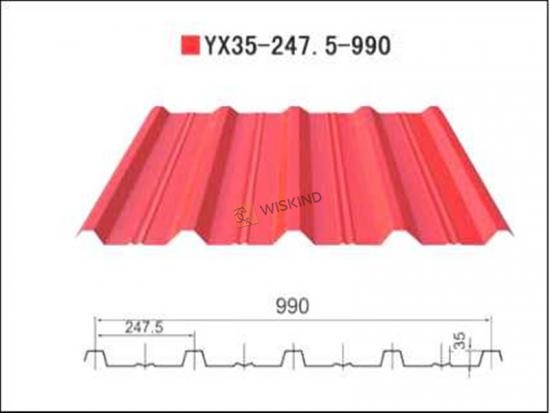

Product Parameters:

Product Name

990 Prefabricated Wall Panel Corrugated Steel Wall Sheets

Profiled Steel Sheets Type

YX35-247.5-990

Effective Width

990mm

Feeding Width

1200mm

Crest Height

35mm

Panel Thickness

0.5-0.6mm

Section Inertia

9.6-11.56cm⁴/m

Section Resistance

8.9-10.6cm³/m


Corrugated Steel Wall Sheets


Product Advantages:

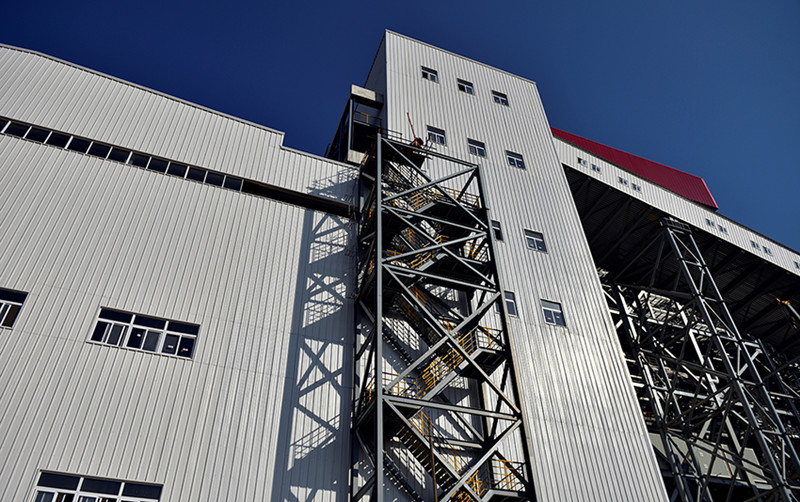

1.Standard wall panels commonly used in industrial buildings.

2.It is directly connected to the secondary structure by screws and has strong wind resistance.

3.The 35mm wave height and trough design make the wall panel have a stronger three-dimensional effect and better appearance.

4.High standard, high strength fasteners provide excellent weather tightness.

5.High effective utilization, easy installation, economical and practical.


Prefabricated Steel Sheets System
