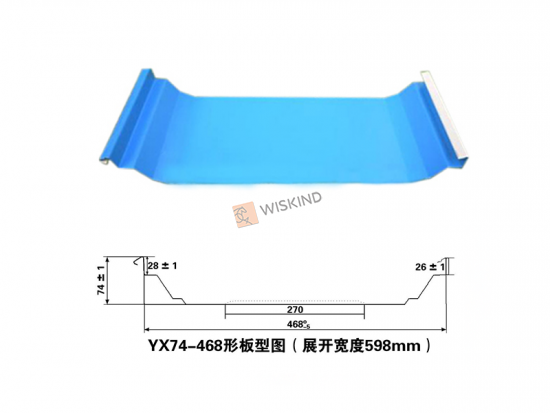

Profiled Steel Roofing Sheets for Prefabricated Metal Panel System

On the basis of the US system, RSS468 Roofing System combines the actual conditions of China, improves part components of the system and integrates advantages of all systems to become better.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 Square Meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

Profiled Steel Roofing Sheets for Prefabricated Metal Panel System


Product Pramateters:

Product Name

Profiled Steel Roofing Sheets for Prefabricated Metal Panel System

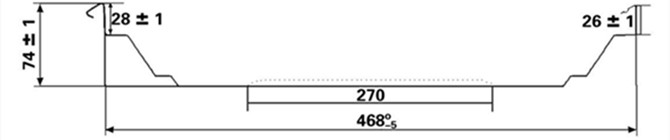

Profiled Steel Sheets Type

RSS468

Effective Width

468mm

Feeding Width

600mm

Thickness

0.5-0.6mm

Section Inertia

35.23-42.21cm4/m

Section Resistance

21.65-25.86cm3/m

Application

DLS-Roof Panel



Product Advantages:

1.The unique hidden support installation, non-penetration of screws on system surface and the unique sliding design for the support and panel connection overcome the displacement of super long panels and fixed supports caused by the phenomena of expanding with heat and contracting wth cold.

2.Due to the 360 vertical seam-locking male and female ribs, the 74±1mm-high ribs and the professional adhesive equipment which can provide prefabricated pressure-sensitive adhesive, the system has excellent waterproof performance among systems of the same kind.

3.Wiskind can provide multiple metal materials for pressing production and various accessory products of the same service life.

4.Standard equipment box shipment and professional operating skills have guaranteed the on-site precision pressing production of large projects.
