Your dream We build
other

Products

Waterproof Al-Mg-Mn Roofing System

Aluminum Magnesium Manganese is an alloy composed of metal Aluminum, Magnesium metal and Manganese metal. Metal Aluminum Magnesium Manganese alloy is widely recognized as architectural design due to its structural strength, weather resistance, stain resistance and easy bending and welding. High quality materials for metal roofing system with a service life of more than 50 years.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 Square Meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

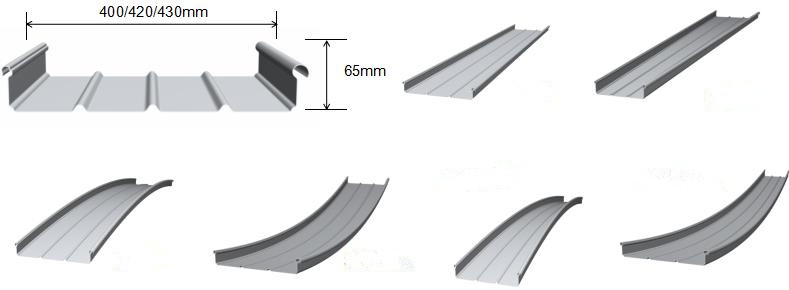

Waterproof Al-Mg-Mn Roofing System




Material

Density ρ (kg/m3)

Elasticity Modulus E (N/mm2)


Coefficient of Linear Thermal Expansion α (Measured by ºC)

Melting Point (ºC)


Yield Strength ReH or RP0.2 (Mpa)


Tensile Strength Rm (Mpa)


Elongation (%)

Main Features

Steel Sheet (350)

7850

206*103

12*10-6

~1420

350

420

14

High strength, low price, non-weldable, large dosage

Aluminum Alloy (3004)

2700

70*103

24* 10-6

650

200

240-285

1

High strength, good flexibility, good corrosion resistance, large coefficient of linear expansion

Stainless Steel Sheet (316)

8000

193*103

18*10-6

~1380

205

515

40

High strength, excellent corrosion resistance and high hardness

Copper Plate (Y2)

8900

118*103

16.8*10-6

1083

80-110

245-345

8

Good corrosion resistance, soft texture, unique patina surface

Titanium Zinc Plate

7200

150*103

22*10-6

420

100

150

35

Low strength, good corrosion resistance, large coefficient of linear expansion, dry surface


Product Advantages:

1.No screw penetration through the roof panel, effectively avoiding corrosion and good durability.

2.The roof panel can be freely stretched and slid to effectively eliminate temperature stress.

3.Professional system accessories, perfect node processing.

4.Flexible processing, easy installation and fast.

5.On-site production to ensure continuous roofing.

6.High flexibility, which facilitates adjustment of production parameters based on site conditions.

7.Avoid possible quality damage caused by transportation, handling and parking.
