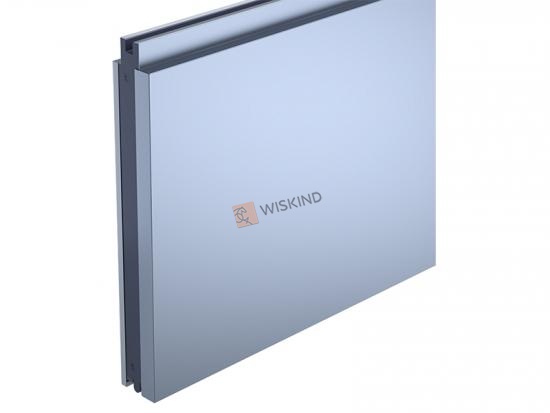

CASSETTE Rock Wool Wall Sandwich Panel with Cold Bridge Broken Structure

CASSETTE™ is a sandwich curtain wall panel with a cold bridge structure. It features a new revolutionized way of panel installation, adopting a non-penetrating fixing structure, and coming with accurately formed inner and outer panels, high-quality water-repellent rock wool core, multi-cavity broken bridge profiles, high-quality flame retardant foam sealing strips, and an effective combination of multiple materials, to give full play to the excellent functions of the product.

As a new generation sandwich panel of Wiskind, it is a heavyweight product integrating broken bridge, insulation and decoration, and is targeted at high-end industrial buildings and various public buildings.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    300 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

1 Product Parameters:

Steel Outer  Layer

Common T (mm)

Outer Panel Specs 0.7-0.8(Coated Steel Panel)


Inner Panel Specs 0.5-0.6(Coated Steel Panel)


Outer Panel Specs 0.9-1.0(Aluminum Panel)


Inner Panel Specs 0.6(Aluminum Panel)

Common L (mm)

400-10,000

Common W (mm)

400-1,200

Coating

PVDF / SRP / HDP / PE

Insulation Core

Core Material

High-density thermal insulation, fireproof and


water-repellent rock wool

VW (kg/m³)

100 / 120

Thickness (mm)

60 / 80 / 100

TC (w/m·k)

≤ 0.043

Fire Rating

Class A

Process

Joint

4-sided Joint

Joint Seam Outlook Width

S20(H / V) / S3(H)

Center Trim Treatment

S20 Horizontal Deployment

≤ 4 m, Center Seam Sealing Strip + Decorative Edge Trim


Or Foam Bar + Sealant


≥ 4 m,  Foam Bar + Steel Buckle


Or Foam Bar + Aluminum Buckle

S20 Vertical Deployment

Open Joint

2 Product Characteristics:

CASSETTE product details


High fire rating

-Adopt high-density water-repellent rock wool with Class A fire rating.

-The foam sealing material is flame-retardant and fire-resistant, with great  weatherability.

Fabricated structure

-Modular design for a prefabricated system with high prefabrication  precision in the factory.

-Modular installation, rapid construction, environmentally friendly and  pollution-free.

Excellent thermal insulation

-Multi-cavity airtight structure is formed at the joint of the PVC profile, while  the broken bridge structure takes into account of both the heat preservation  and insulation.

-The broken bridge structure without penetrating screws, as well as the  non-penetrating installation method, ensures the integrity of the thermal  insulation layer and greatly improves the thermal insulation performance.

-High-density thermal insulation, fireproof and water-repellent rock wool for  better thermal insulation performance.

CASSETTE product characteristics

Ultra-flat Surface

-When deployed horizontally, each panel transmits its stress independently to avoid  squeezing and deformation of the panel at the joint and improve the flatness after  installation. The F-type fastener adopts a sliding structure, which prevents the deformation  caused by indoor temperature difference between the panel and the structure, thus  keeping the building surface flat enduringly.

-The fixing method is upgraded from the point contact of the screw head to the surface  contact of the fastener, so that the stress is uniform and the system reliable.

Waterproof performance

-The joint end is designed scientifically to reduce water seepage.

-The twisty joint increases the waterproof performance.

-The double-layer slow-rebound PVC foam provides a reliable elastic sealing effect, as well  as great water tightness.

Service Life Guarantee

-Non-penetrating panel installation can prevent the screws from wearing that may cause  fatigue damage to the holes and joints.

-The broken bridge structure without screw penetration avoids condensation and keeps the  internal structure of the building dry.

-The proprietary "WISKIND" fasteners improve the surface hardness and wear resistance  through the carburizing process, ensuring the safety and improve the service life of the building.

-The surface of the F buckle is anodized for aesthetics and durability.

3 Product Structure:

CASSETTE product structure

-Precise molding of internal and external panels

-High quality water-repellent rock wool temperature core material

-Multicavity broken bridge profiles for sons and mothers

-Sealing end cover for child and mother mouth

-End edge sealing piece

-Flame retardant foam sealing strip (in mouth groove)

Non-penetrating fixing method

-Does not destroy the integrity of the panel and insulation layer, greatly improve the thermal insulation performance of the material, energy saving and consumption reduction;

-Avoid repeated deformation of the piercing screw to cause fatigue damage to the holes and joints, and improve the service life.

4 Product Project Case

CASSETTE product case1

--CASSETTE Rock Wool Wall Sandwich Panel Product Cases1

CASSETTE product case2

--CASSETTE Rock Wool Wall Sandwich Panel Product Cases2

5 Product Knowledge:

CASSETTE product knowledge

Insulation

1. High quality thermal insulation fireproof rock wool.

2. The broken bridge structure without screw penetration, non-penetrating installation mode, does not destroy the integrity of insulation layer, improve thermal insulation performance, reduce energy consumption, energy saving, environmental protection and sustainable.

3.PVC Tongue-and-Groove multi-cavity air closed structure, gives good heat insulation performance.
