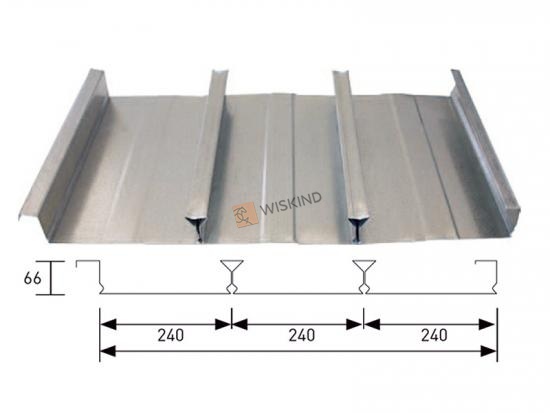

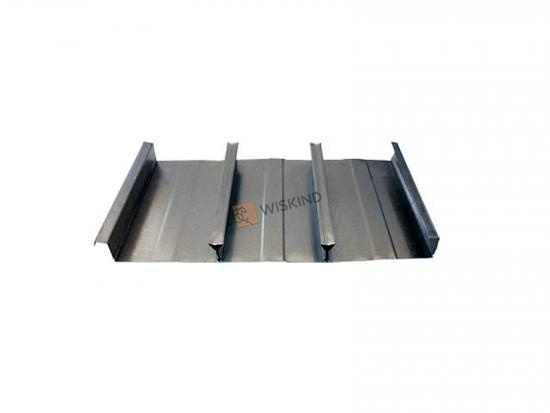

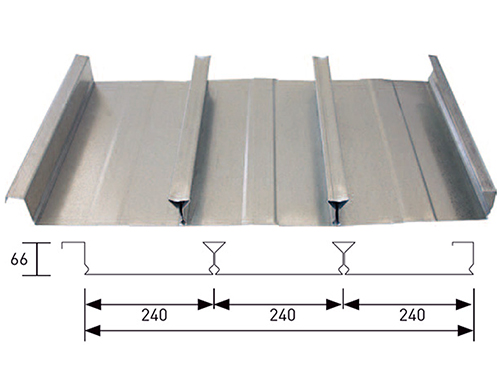

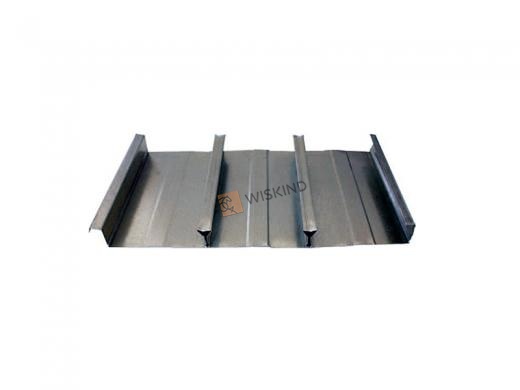

Galvanized Closed Type Decking Floor Series
The composite decking floor seires is a product that Wiskind developed according to the needs steel-concrete composite structure.
Payment:
TT/LCProduct Origin:
Shandong Province, ChinaColor:
Customized as your requestMOQ:
500 square metersShipping Port:
Qingdao Port, ChinaLead Time:
30s-45s days after receiving your deposi1 Product Parameters:
Effective |
Expanded Width |
Total Thickness |
Yield Strength |
Moment of Inertia |
Moment of Resistance(cm4/m) |
|
Width(mm) |
Wx1 |
Wx2 |
||||
720 |
1210 |
0.8 |
250 |
76.63 |
51.09 |
15.96 |
720 |
1210 |
1 |
250 |
95.83 |
63.89 |
19.96 |
720 |
1210 |
1.2 |
250 |
115.1 |
76.73 |
23.97 |
2 Product Characteristics:
Features: Pressed with galvanized steel sheet, load-bearing plate of multi-storey building, closed type, can process high-strength plate Q410.
Material width: 1000 /1060/1219
Material thickness: 0.8mm-1.5mm
Production speed: 350 m/h
1. The bottom of the board is flat and the web is attached, and a variety of ceiling treatment methods can be provided according to the different functions and needs of various rooms.
2. The center of gravity of the section is about 16mm away from the bottom of the plate, which has a larger structural bearing capacity or a higher safety factor.
3. Reduce the thickness of the floor slab and increase the headroom height. ,
4. The closed rib design, like steel bars, can maximize the respective characteristics of steel and concrete.

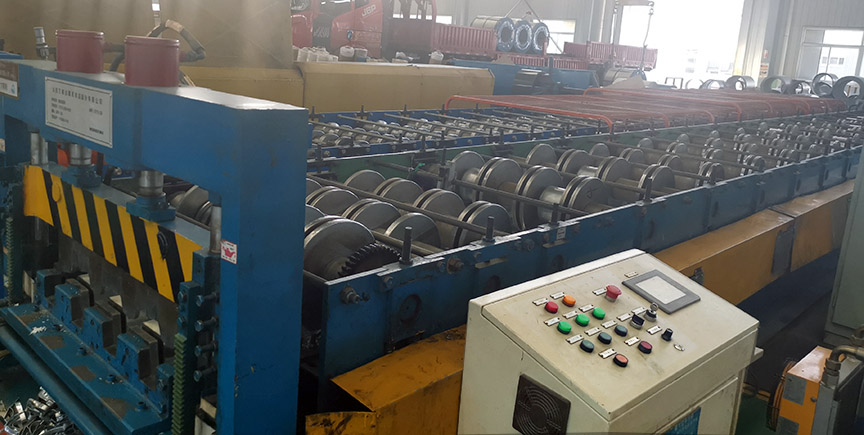

Fully automatic computer control, variable frequency stepless speed regulation, hydraulic forming die scissors cutting.
The plate is fed by the unloading rack, and enters the main machine through the main machine guide device to be rolled and formed. There is a rotary encoder to measure the length, and its pulse signal is fed back to the computer board, and then the main motor is controlled by the computer.

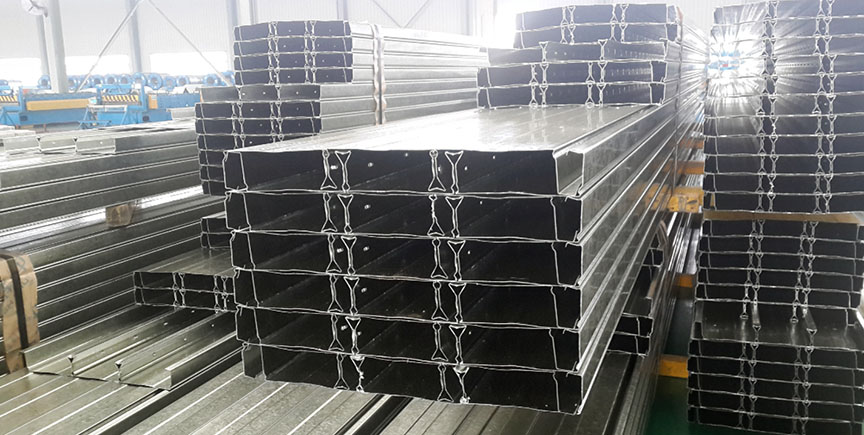

4 Product Packaging And Delivery:
5 Product Project Cases:

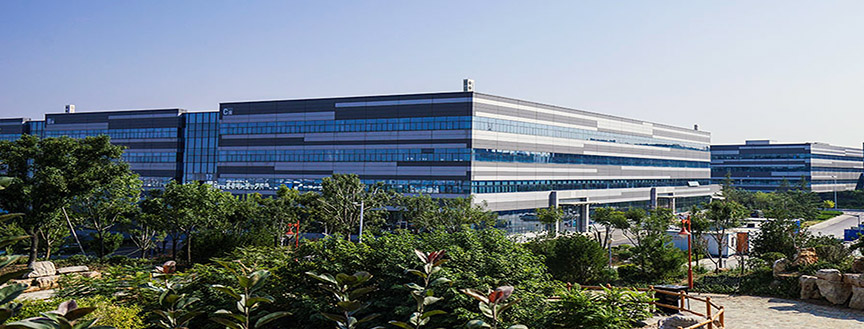

---DFP720 Steel Decking Panel Project Cases of Weifang Goer Electronics Co., Ltd.
---DFP720 Steel Decking Panel Project Cases of Zibo Instrument Industrial Park
