Galvanized Closed Type Decking Floor Series

The composite decking floor seires is a product that Wiskind developed according to the needs steel-concrete composite structure.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    25 Tons
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

Galvanized Closed Type Decking Floor Series


Product Introduction:

Wiskind closed type decking floor series have many types, such as YX60-180-540, YX60-263-790.

Product Name

Galvanized Closed Type Decking Floor Series

Type

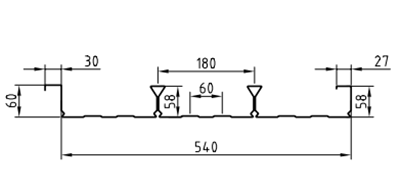

YX60-180-540

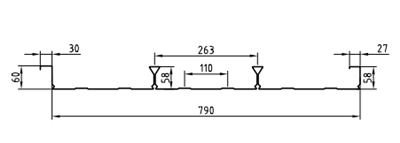

YX60-263-790

Thickness(mm)

0.8

1.0

1.2

0.8

1.0

1.2

Weight(kg/m2)


11.63

14.54

17.45

9.94

12.42

14.91

Section Inertia(cm4/m)

73.20

91.50

109.20

60.6

72.15

83.11

Section Resistance(m3/m)

14.81

18.52

22.22

41.79

49.89

57.32

Effective Width(mm)

540

790

Product Advantages:

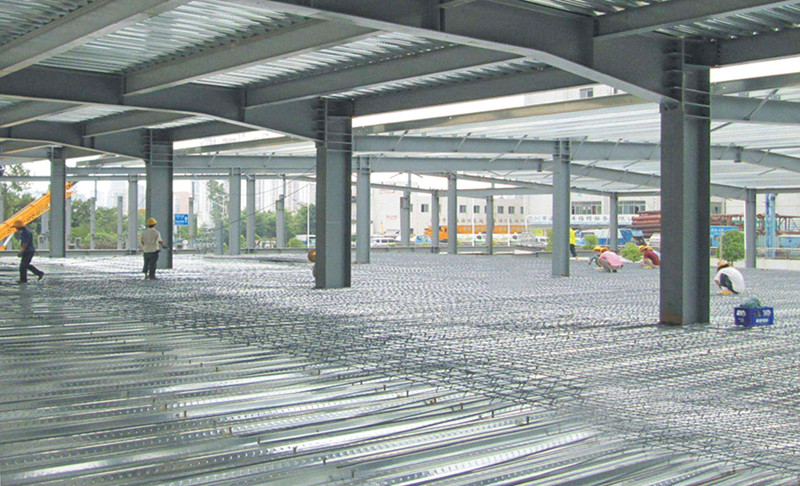

1.The composite floor bearing plate bears the construction load during the construction phase, works with the concrete in the use stage, bears the use load, and gives full play to the characteristics of the steel and concrete materials.

2.It has many features. Such as, light weight, high strength, strong rigidity, simple construction and standardized production at the factory.

Closed Type Decking Floor Series
