Galvanized Open Type Decking Floor Series

The open type decking floor seires is a product that Wiskind developed according to the needs steel-concrete composite structure, used for multi-story buildings.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

Galvanized Open Type Decking Floor Series


Product Introduction:

Wiskind open type decking floor series have many types, such as YX75-200-600, YX76-344-688.

Product Name

Galvanized Closed Type Decking Floor Series

Type

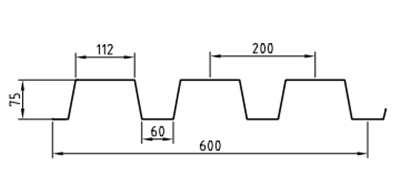

YX75-200-600

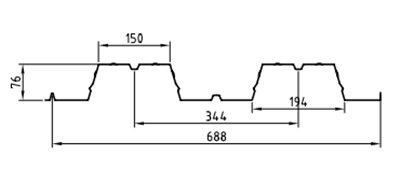

YX76-344-688

Thickness(mm)

0.8

1.0

1.2

0.8

1.0

1.2

Weight(kg/m2)


10.45

13.08

15.7

9.13

11.41

13.69

Section Inertia(cm4/m)

127.5

158.2

190.1

119.5

148.2

180.1

Section Resistance(m3/m)

33.34

41.69

50.04

28.54

35.68

42.83

Effective Width(mm)

600

688

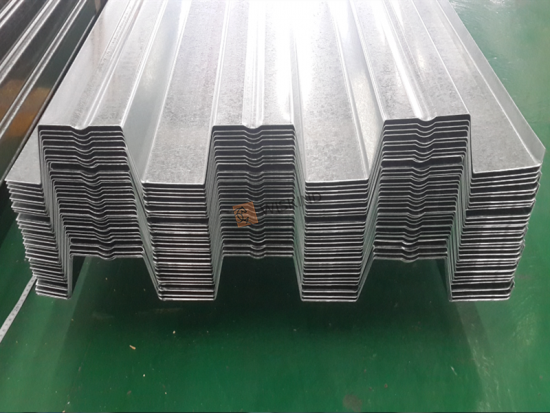

Composite Decking Floor

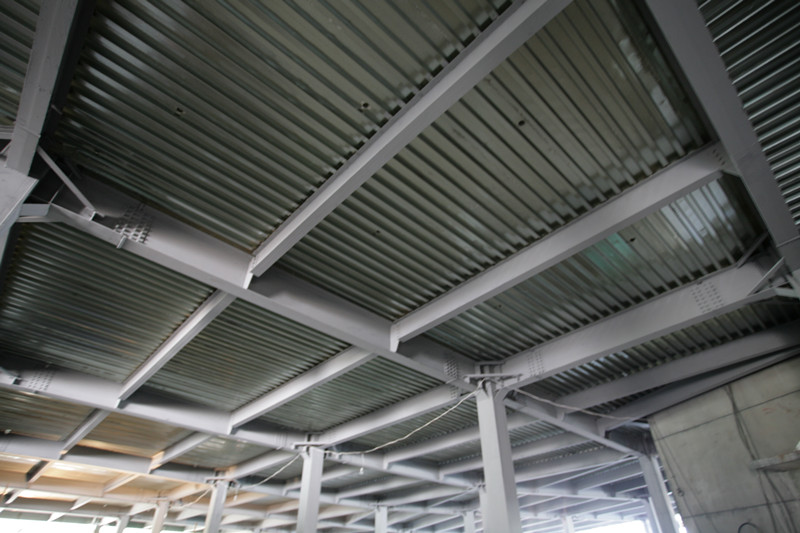

Composite Floor Decking

Product Advantages:

1.The composite floor bearing plate bears the construction load during the construction phase, works with the concrete in the use stage, bears the use load, and gives full play to the characteristics of the steel and concrete materials.

2.It has many features. Such as, light weight, high strength, strong rigidity, simple construction and standardized production at the factory.

Open Type Decking Floor Series
