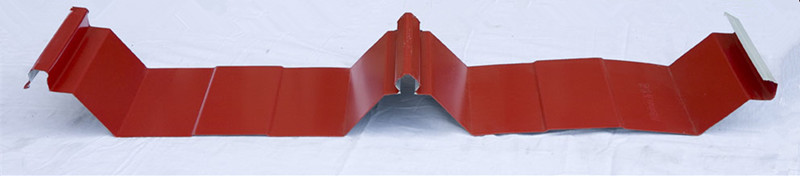

760 Bite Type Wall Panel Corrugated Steel Roofing Sheets

Wiskind 760 corrugated steel roofing sheets needs to be installed by brackets, the screws are not exposed, it is used for large-span roofing, the drainage effect is good, it is not suitable for transportation, and it is mostly used for on-site processing.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    1000 Square Meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

760 Bite Type Roof Panel Corrugated Steel Roofing Sheets

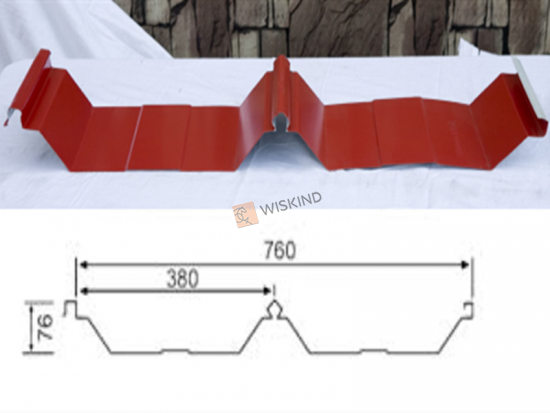

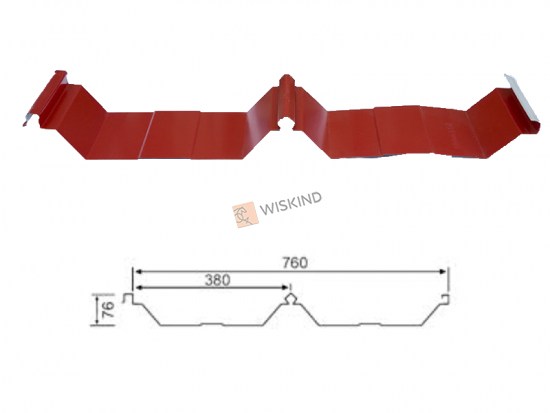

Product Parameters:

Product Name

760 Bite Type Big Roof Panel Corrugated Steel Roofing Sheets

Profiled Steel Sheets Type

YX76-380-760

Effective Width

760mm

Feeding Width

1000mm

Crest Height

76mm

Panel Thickness

0.5-0.6mm

Section Inertia

39.03-46.86cm⁴/m

Section Resistance

17.89-21.42cm³/m



Product Advantages:

1.360° occlusion---Upright lock seam 760 roofing system.

2.360° vertical fastening seam, excellent waterproof and airtight.

3.No screw penetration on the surface of the system.

4.The unique sliding-sliding bracket makes the system have perfect thermal expansion and contraction compensation function.

5.Processed equipment cabinets to ensure accurate on-site suppression of large projects.

Corrugated Steel Sheets for Roofing
