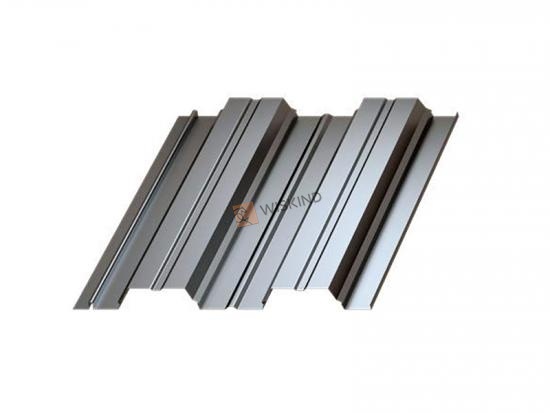

DOTP688 Open Type Galvanized Steel Composite Floor Deck

YX76-344-688 Open Type Metal Floor Deck.This plate is usually used as the floor of high buildings, it can save steel mound and can also save the weight, in the same loading capacity, use this panel, and save the steel quantity, and thus save cost.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    500 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    30s-45s days after receiving your deposi
  • Product Details

1 Product Parameters:

Effective

Expanded Width
(mm)

Total Thickness
(mm)

Yield Strength
(N/nm2)

Moment of Inertia
(cm4/m)

Moment of Resistance(cm4/m)

Width(mm)

Wx1

Wx2

688

1000

0.8

250

117.91

34.13

27.91

688

1000

1

250

147.42

42.5

34.84

688

1000

1.2

250

176.97

50.84

41.75

2 Product Characteristics:

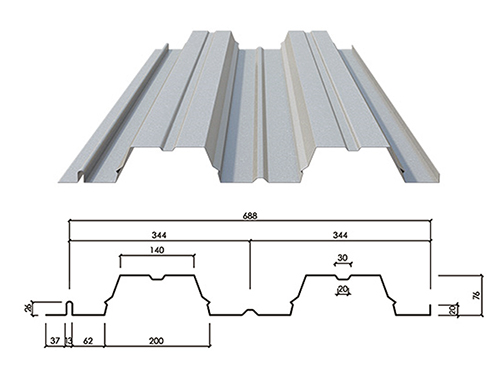

DOTP688 Open Type Floor Deck Product Details

Material width: 1000mm
Material thickness: 0.8mm-1.2mm
Raw material requirements: galvanized sheet
Raw material
Continuous hot dip galvanized steel plate is mainly used, and aluminum zinc plated steel plate is rarely used
Reason of raw material chosen:
Galvanized steel plate mainly has galvanized sheet and continuous hot galvanized sheet, galvanized sheet is only on the surface of the steel plate on a layer of coating, corrosion resistance is poor, cold bending may appear peeling phenomenon; And continuous hot dip galvanized, zinc can be immersed into the surface of the steel plate, the formation of Zn-Fe alloy, corrosion resistance is better, so it is recommended to use continuous hot dip galvanized steel plate.
According to the provisions of the national standard "Guide to Zinc and aluminum Overlay for corrosion resistance of Steel structures" GB/T 19355-2003, the aluminized zinc plate is in direct contact with concrete, and the contact surface should be passivated to prevent the chemical reaction between aluminum and concrete and destroy the bond performance of concrete and molded steel plate. In theory, it is possible to passivate the surface of aluminized zinc plate, but in practice, the cost increases a lot and it is difficult to do so. Therefore, it is not recommended to use aluminium-zinc plate as profiled plate for composite floor slab.

3 Product Production Machines:

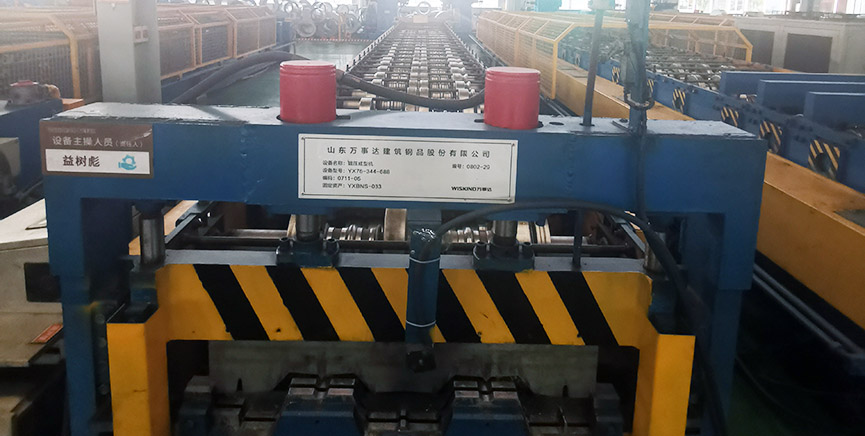

Product Production Machines

4 Product Packaging And Delivery:

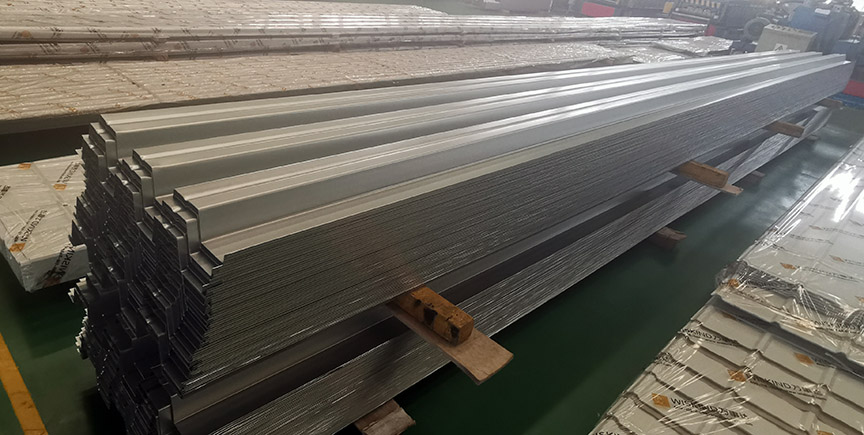

Product Packaging And Delivery

5 Product Project Cases:

DOTP688 Open Type Floor Deck Project Cases

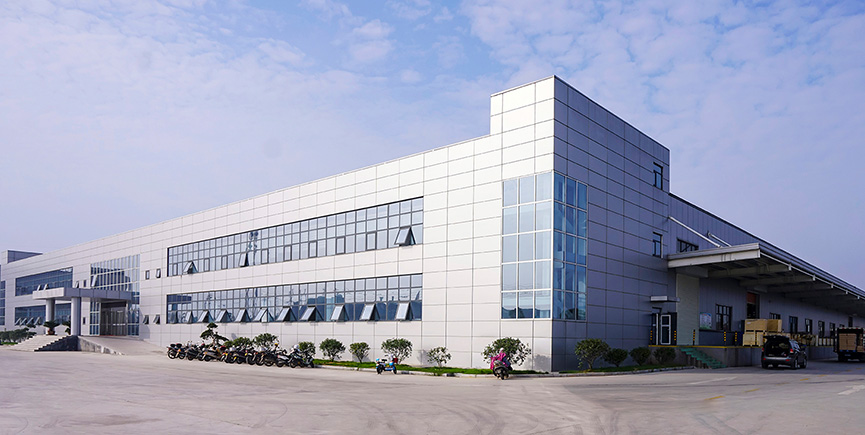

---DOTP688 Open Type Floor Deck Project Cases of Auto Seat Production Base of BAIC Dashi Corporation

Leave a message
If you are interested in any of our products, please feel free to contact us. We are looking forward to your cooperation.

Related Products

Closed Type Decking Floor Series

Galvanized Closed Type Decking Floor Series

The composite decking floor seires is a product that Wiskind developed according to the needs steel-concrete composite structure.

Open Type Decking Floor Series

Galvanized Open Type Decking Floor Series

The open type decking floor seires is a product that Wiskind developed according to the needs steel-concrete composite structure, used for multi-story buildings.

DOTP690 Structural Metal Decking

DOTP690 Structural Metal Decking for Multi-story Building

Wancheng® YX75-230-690 metal decking composite floor is developed by Wiskind according to the needs of steel-concrete composite structure with strong support from Tianjin University. Wancheng composite floor uses shear connectors to connect steel. The slab and the concrete are connected and subjected to common force, giving full play to the inherent advantages of these two materials.

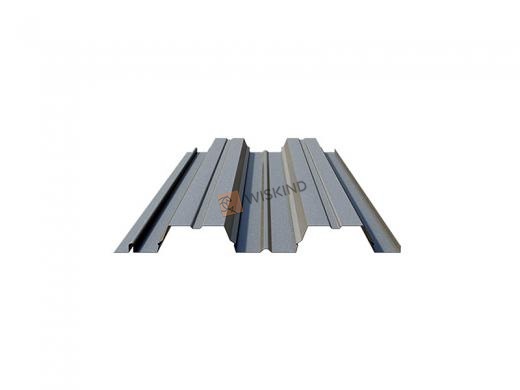

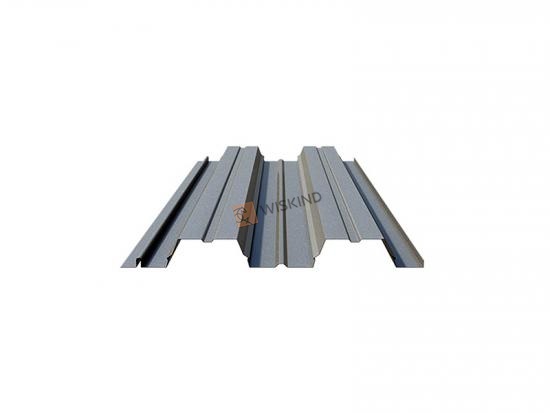

DOTP720 Composite Steel Deck
