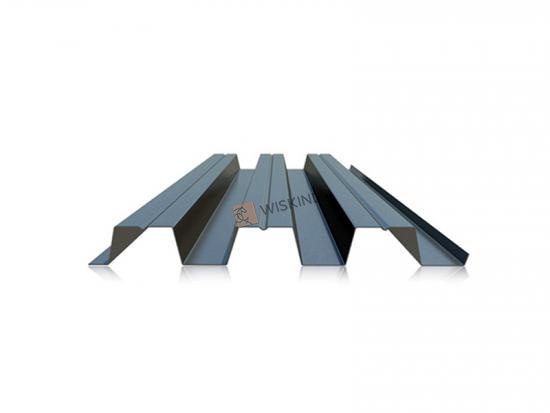

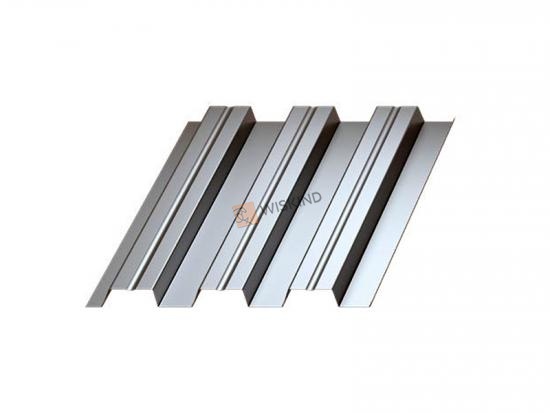

DOTP690 Structural Metal Decking for Multi-story Building

Wancheng® YX75-230-690 metal decking composite floor is developed by Wiskind according to the needs of steel-concrete composite structure with strong support from Tianjin University. Wancheng composite floor uses shear connectors to connect steel.
The slab and the concrete are connected and subjected to common force, giving full play to the inherent advantages of these two materials.

Payment:
TT/LC
Product Origin:
Shandong Province, China
Color:
Customized as your request
MOQ:
500 square meters
Shipping Port:
Qingdao Port, China
Lead Time：
30s-45s days after receiving your deposi

Contact Now

Product Categories

New Products

Product Details

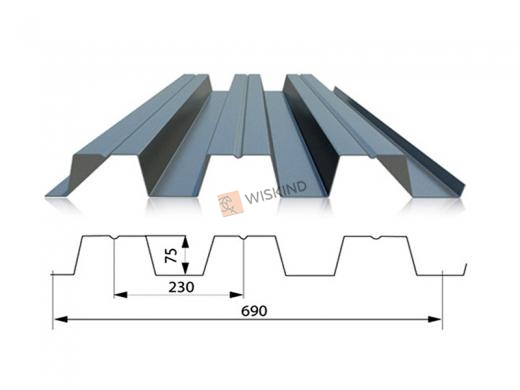

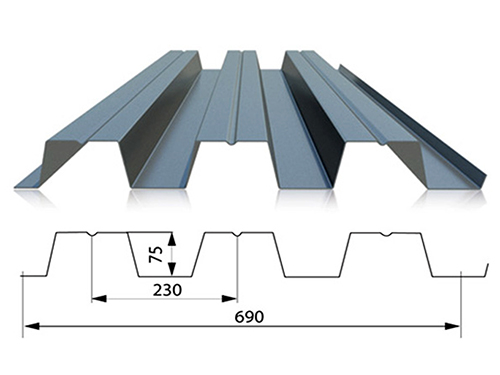

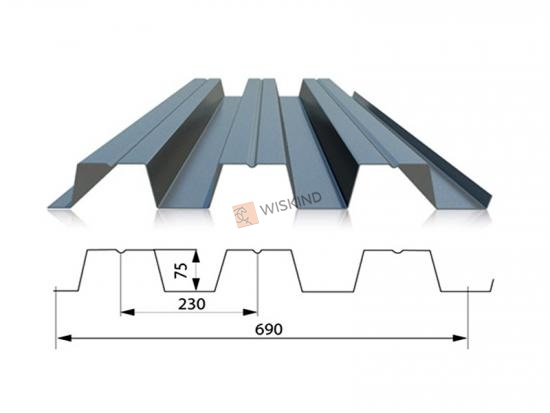

1 Product Parameters：

Effective	Expanded Width (mm)	Total Thickness (mm)	Yield Strength (N/nm2)	Moment of Inertia (cm4/m)	Moment of Resistance(cm4/m)
Width(mm)	Expanded Width (mm)	Total Thickness (mm)	Yield Strength (N/nm2)	Moment of Inertia (cm4/m)	Wx1	Wx2
690	1105	0.8	250	126.7	34.06	32.65
690	1105	1	250	158.3	42.55	40.8
690	1105	1.2	250	190	51.08	48.97

2 Product Characteristics：

DOTP690 Structural Metal Decking Product Details

Material width: 1100mm
Material thickness: 0.8mm-1.5mm
Raw material requirements: galvanized sheet
Matters needing attention: The material can be processed with medium-strength G350, and when processing the high-strength plate with the material G550, the processing thickness is 0.8-1.2mm

1. The floor deck saves a lot of labor and reduces the workload in terms of transportation, stacking and installation.
2. Save a lot of temporary formwork, save all or part of the formwork support, reduce the amount of concrete, and reduce the load of the structure.
3. The floor deck fully utilizes the good tensile strength and ductility of steel and the excellent compressive strength and high rigidity of concrete.
4. It is easy to lay communication, electric power, heating and other pipelines, and can lay materials such as heat preservation, sound insulation, heat insulation, vibration isolation, etc. to improve the performance of the floor.
In the use of materials and during the conveying process, some properties of the materials should be considered to avoid damage. Follow the editor to learn more about profiles.

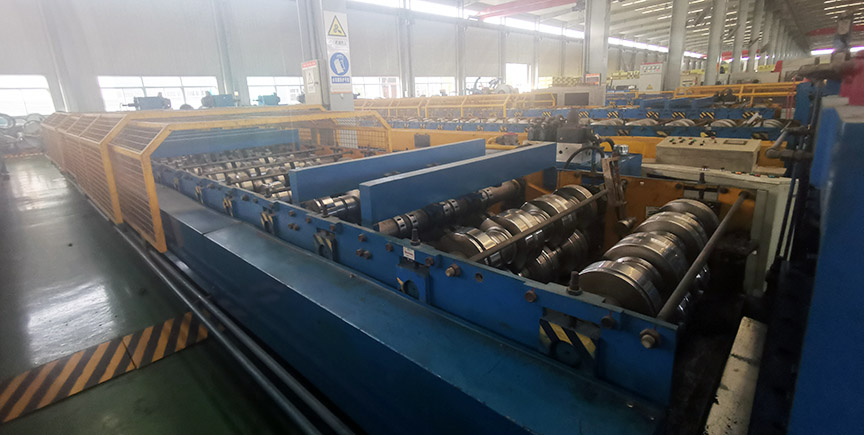

3 Product Production Machines：

DOTP690 Structural Metal Decking Procuct Machine
