DOTP915 Corrugated Metal Decking for Concrete

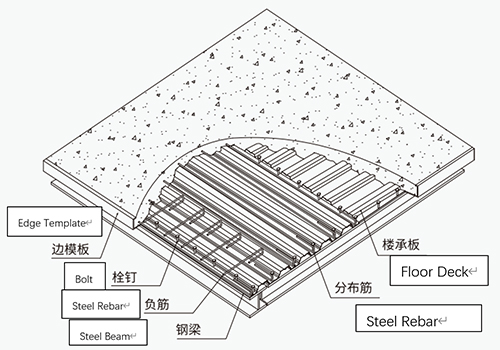

In multi-storey buildings and high-rise steel structure buildings, steel composite decking bearing plates and concrete are combined to form a whole. In such structure, the bearing plate bears construction load during construction, and acts with concrete during use to bear use load.

  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    500 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    30s-45s days after receiving your deposi
  • Product Details

1 Product Parameters:

Effective

Expanded Width
(mm)

Total Thickness
(mm)

Yield Strength
(N/nm2)

Moment of Inertia
(cm4/m)

Moment of Resistance(cm4/m)

Width(mm)

Wx1

Wx2

915

1150

0.8

250

45.49

17.08

18.82

915

1150

1

250

56.87

21.26

23.44

915

1150

1.2

250

68.26

25.4

28.05

2 Product Characteristics:

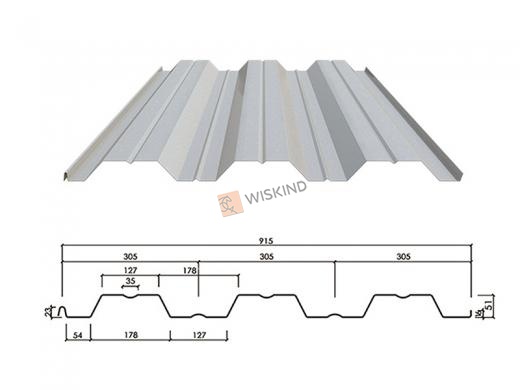

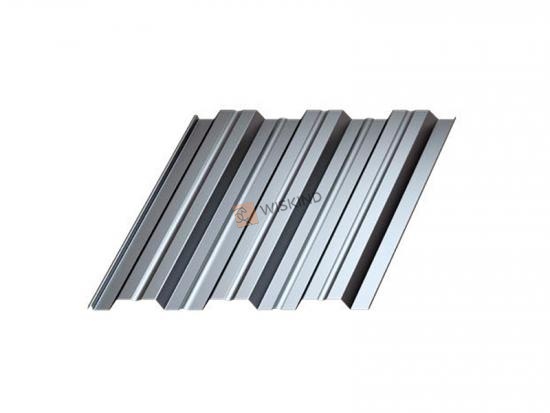

DOTP915 Corrugated Metal Decking Details

1: To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay floor decking plates and layer-by-layer pouring concrete slabs for flow construction.
2: In the use stage, the floor deck is used as the tensile reinforcement of the concrete floor, which also improves the stiffness of the floor and saves the amount of steel and concrete.

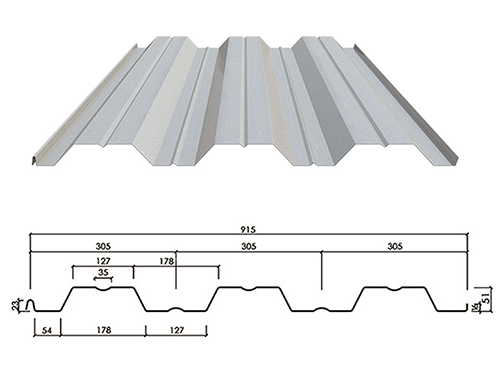

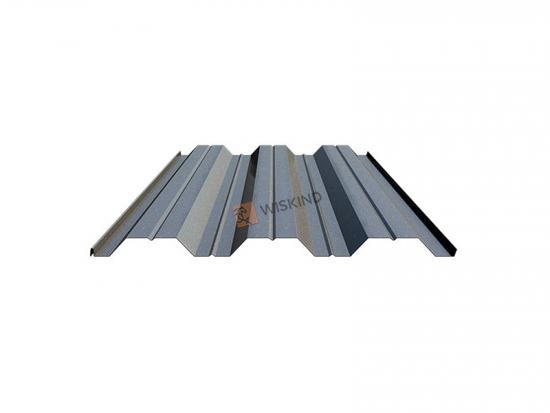

DOTP915 Corrugated Metal Decking Details2
3: The embossing on the surface of the floor decking makes the maximum bonding force between the floorboard and the concrete, so that the two form a whole, with stiffeners, so that the floorboard system has a high-strength bearing capacity.
4: Under the cantilever condition, the floor deck is only used as a permanent formwork. The length of the overhang can be determined according to the section characteristics of the floor deck. In order to prevent the cracking of the cantilever plate, it is necessary to add negative reinforcement at the support according to the design of the structural engineer.

3 Product Production Machines:

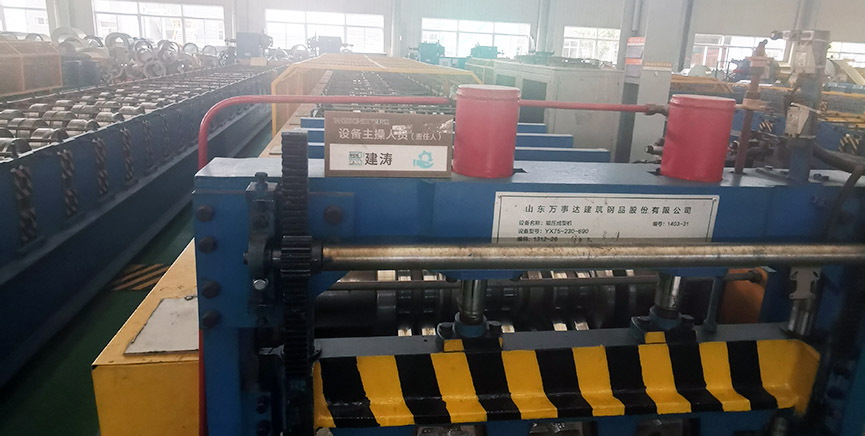

DOTP915 Corrugated Metal Decking Production Machines

4 Product Packaging And Delivery:

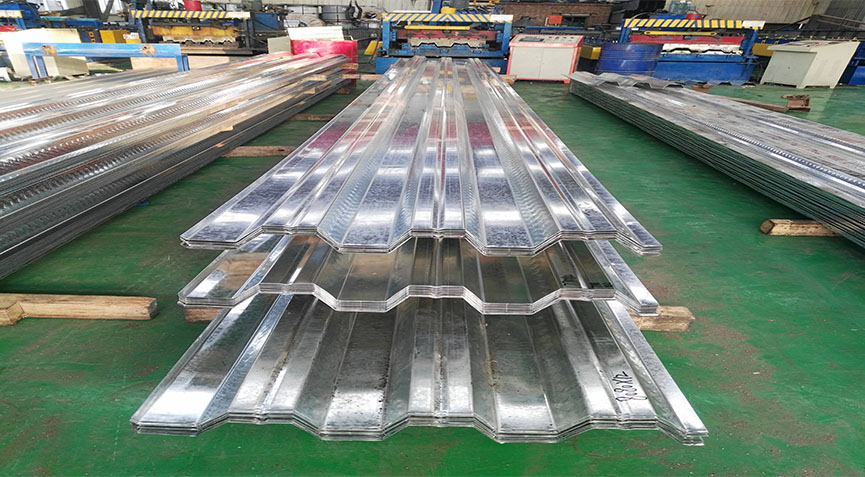

Product Packaging And Delivery

5 Product Project Cases:DOTP915 Corrugated Metal Decking Project Cases1

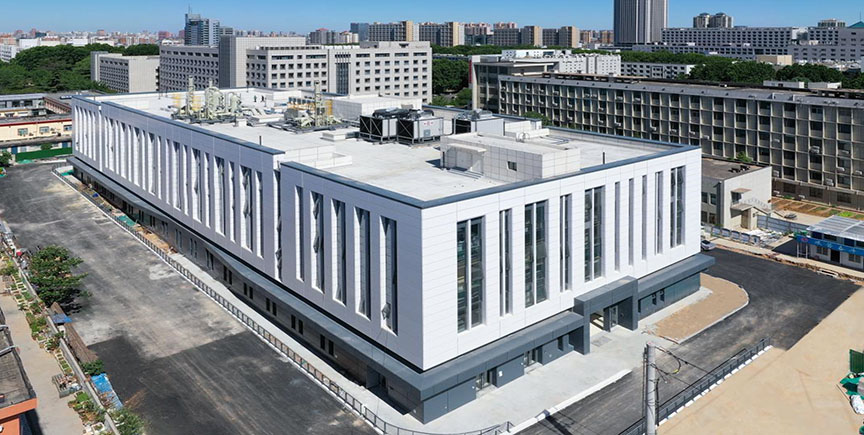

---DOTP915 Corrugated Metal Decking Project Cases of Shan Dong University
