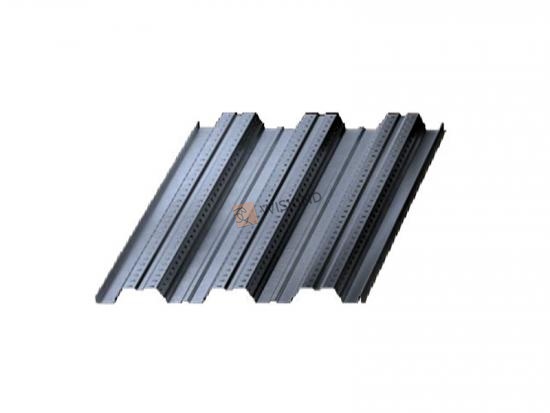

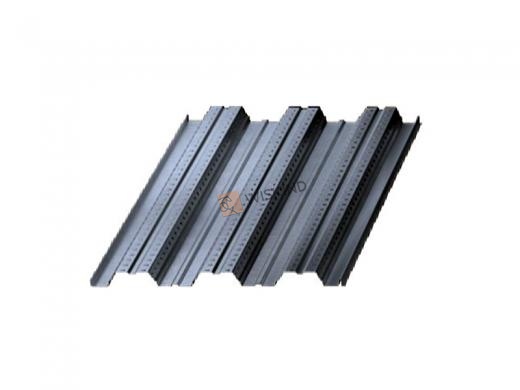

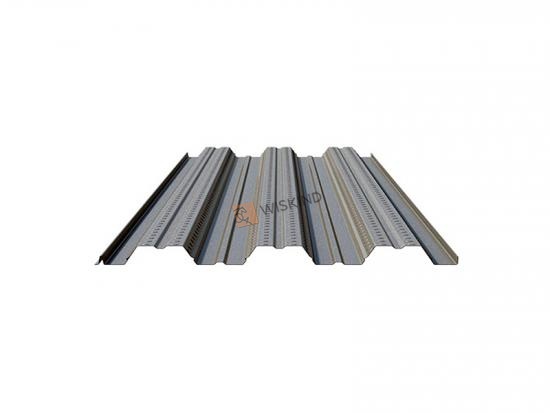

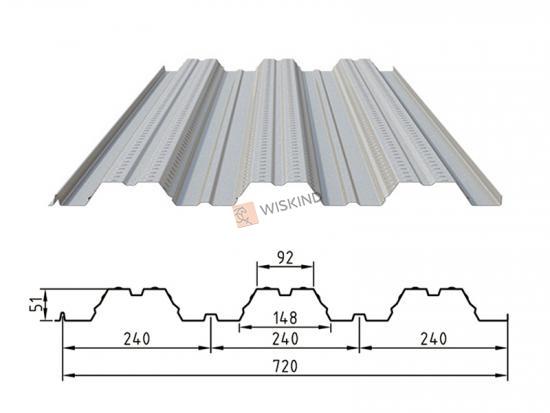

DOTP720 Galvanized Steel Floor Decking Sheet

DOTP720 Galvanized Steel Composite Steel Deck has the advantages of light weight, high strength, high rigidity, convenient and fast construction, easy to update, and convenient for industrial production.
point.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    500 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    30s-45s days after receiving your deposi
  • Product Details

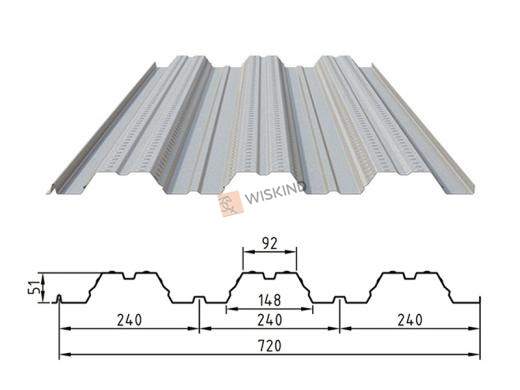

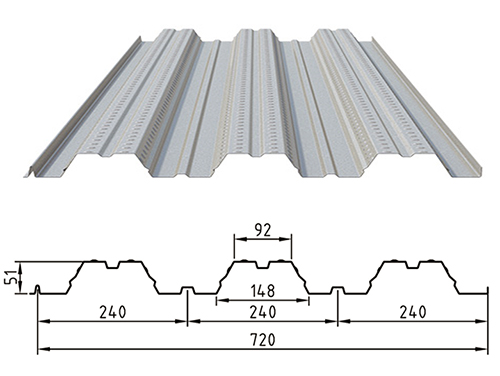

1 Product Parameters:

Effective

Expanded Width
(mm)

Total Thickness
(mm)

Yield Strength
(N/nm2)

Moment of Inertia
(cm4/m)

Moment of Resistance(cm4/m)

Width(mm)

Wx1

Wx2

720

1000

0.8

250

47.21

19.47

17.13

720

1000

1

250

59

24.22

21.35

720

1000

1.2

250

70.87

28.95

25.57

2 Product Characteristics:

DOTP720 Composite Steel Deck Product Details

Material width: 1000mm
Material thickness: 0.8mm-1.2mm
Raw material requirements: galvanized sheet
Matters needing attention: The material can be processed by Upjohn G235

The reason why the floor deck is so widely used is because it has many advantages. The following is an introduction to the advantages.
1. Good energy-saving effect, good thermal insulation performance and good seismic performance. Energy saving is 50%. Compared with traditional buildings, residential buildings can meet the requirements of flexible separation in buildings, improve the area utilization rate, and increase the effective indoor area by about 6%.
2. When the system is used in residential buildings, it can give full play to the good ductility and plastic deformation ability of steel structures, has good seismic and wind resistance performance and greatly improves the safety and reliability of residential buildings. Especially in the event of disasters such as earthquakes and typhoons, the steel structure can avoid the collapse of buildings.
3. The total weight of the building is light, the self-weight of the steel structure residential system is about half of that of the concrete structure, and the basic cost is also reduced.
4. the construction speed is fast, and the construction period can be shortened by at least one third compared with traditional houses.
5. the environmental protection effect is good. The steel structure house greatly reduces the amount of sand and lime during construction, and the materials used are mainly green, environmentally friendly, recyclable or degradable materials, which will not cause garbage.

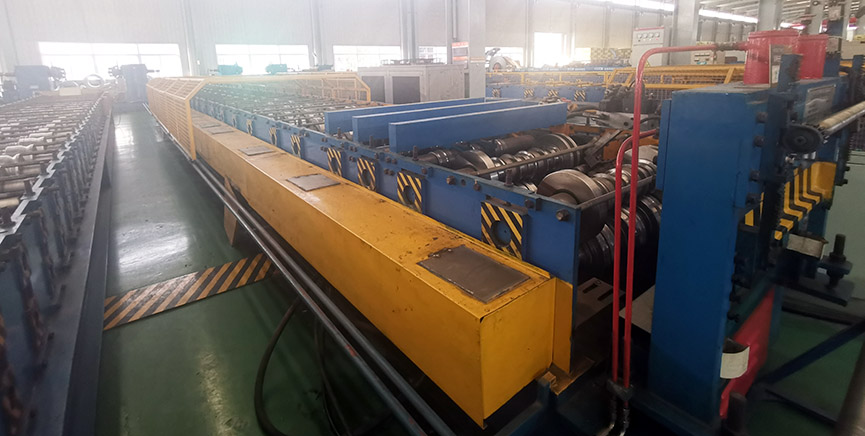

3 Product Production Machines:

DOTP720 Composite Steel Deck Product Machines

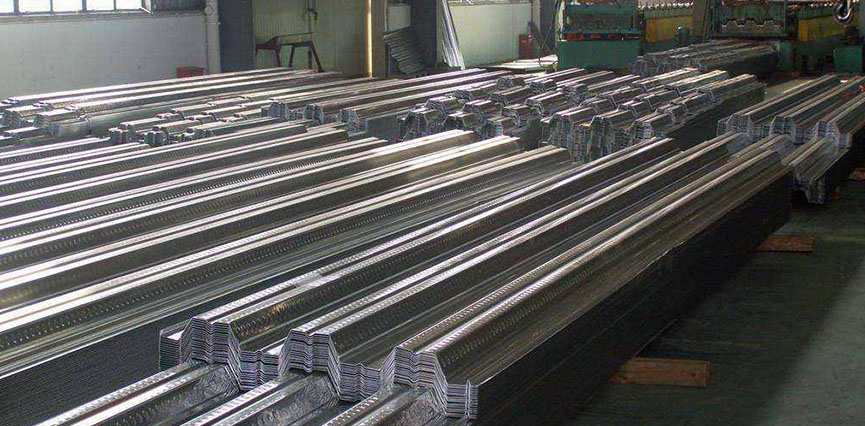

4 Product Packaging And Delivery:

Product Packaging And Delivery

5 Product Project Cases:

DOTP720 Composite Steel Deck Product Project cases

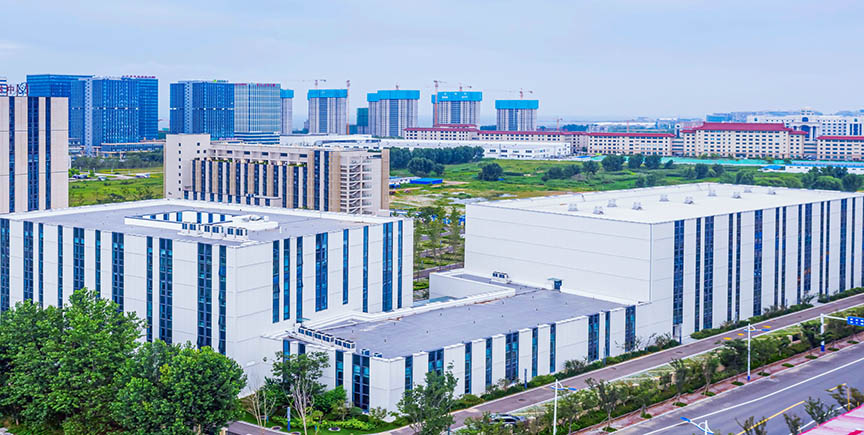

---DOTP720 Composite Steel Deck Project Cases of Qingdao CNNC
