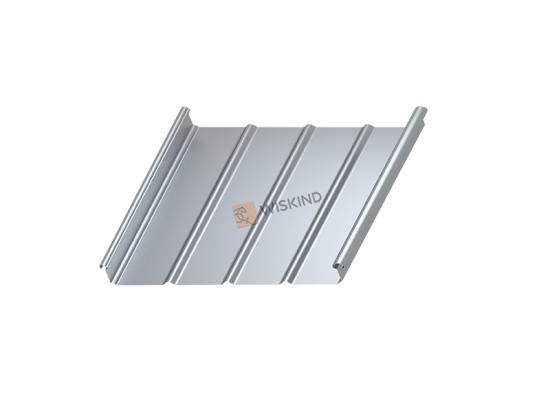

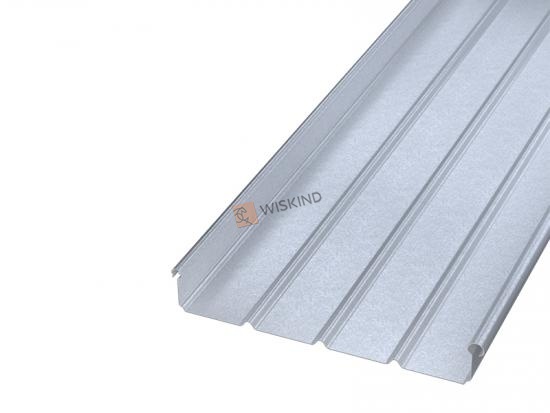

TR65 Al-Mg-Mn Standing Seam Steel Roof Panels

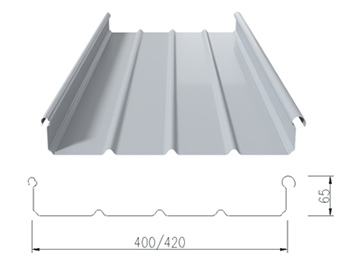

1 Product Parameters：

2 Product Characteristics：

Strong durability

-Anti-corrosive base material: the 3004 Al-Mg-Mn alloy that boasts  strong anti-corrosion performance is used.

-Surface damage caused during transportation or construction  does not affect the anti-corrosion performance.

Strong wind resistance

-The male and female buckle members are tightly engaged to  provide better wind resistance, in addition to the outstanding  waterproof performance.

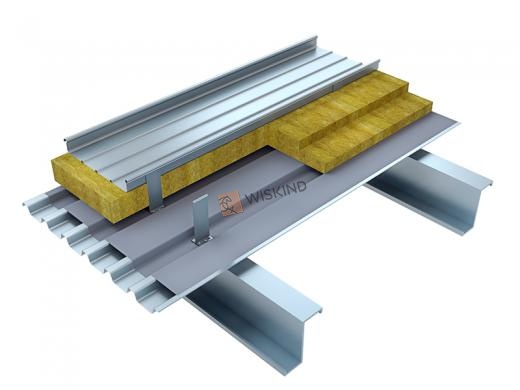

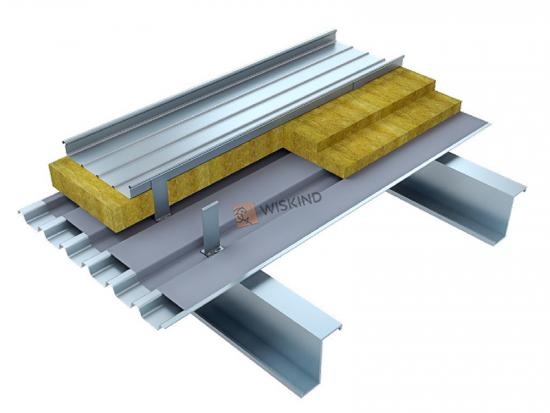

-The metal panel is engaged by the lock seam, and fixed to the  T-shaped aluminum support, so as to offer a great waterproof

and wind resistance performance without damaging the surface  of the metal roof.

Waterproof and reliable

-It is fixed using the concealed buckle and mechanical locking,  without any screws penetrating the roof, thus effectively avoiding  the potential risk of water leakage.

-The horizontal lap joint adopts a special undercutting machine,  which features an outstanding sealing performance, with means  to prevent water seepage.

-The aluminum roof panels and flashing edges allow welding,  which perfectly handles the waterproof related problems of roof  openings.

Outstanding design

-Two rib heights are available to adapt to different slopes and  visual effects.

-Al-Mg-Mn features considerable strength and flexibility, so able  to create complex shapes such as positive arc, negative arc, fan

-shape and curved 3D surface, which brings various design ideas  to life while ensuring the waterproof capability.

Efficient Construction

-The application of mobile pressing machine breaks through the  restrictions on panel length due to transportation conditions,  reduces the longitudinal overlap of the panel, with high flexibility

-to conveniently adjust production parameters based on  construction conditions, which helps reduce the production cycle  and ensure product quality.

Multifunctionality

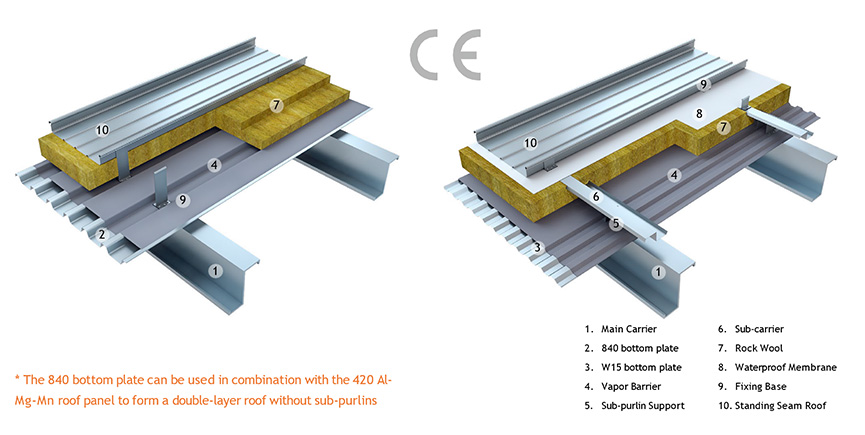

-The Al-Mg-Mn roofing system can be matched with an open  decorative panel system to form a double-layer structure, which  is waterproof and aesthetic; a snow blocker can also be set up

-according to snow pressure and roof slope.

The PV power generation system can be installed on the Al-Mg-Mn roof.

-In addition, the regular inspection, cleaning, maintenance and  renovation of the roof require a fall prevention system on the  roof.

-Also, able to be used as a greening roof to effectively improve the  environment and heat-island effect.

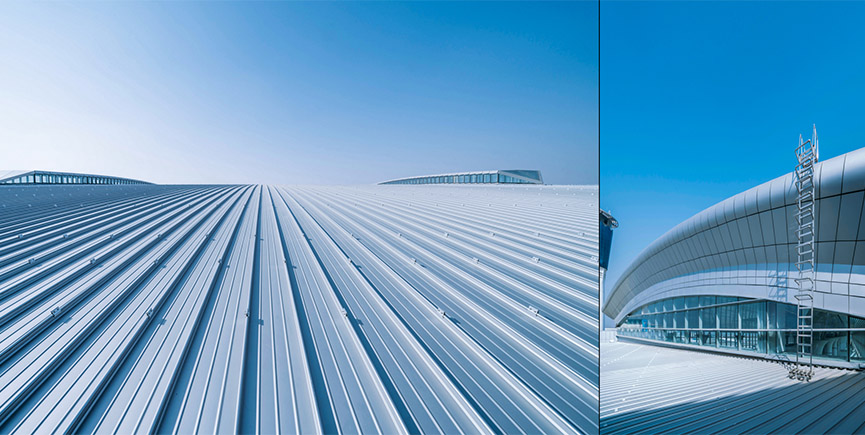

4 Product Project Cases：

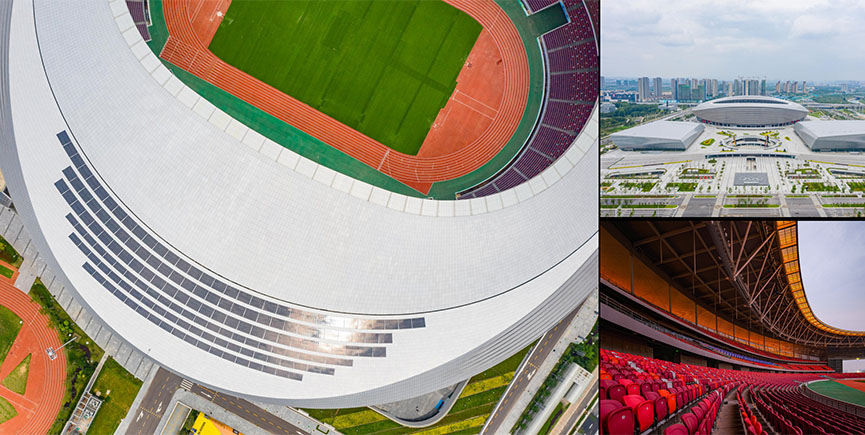

-- TR65 Standing Seam Roofing System Project Cases of Zhengzhou Olympic Sports Center

-- TR65 Standing Seam Roofing System Project Cases of Universal Studios Beijing

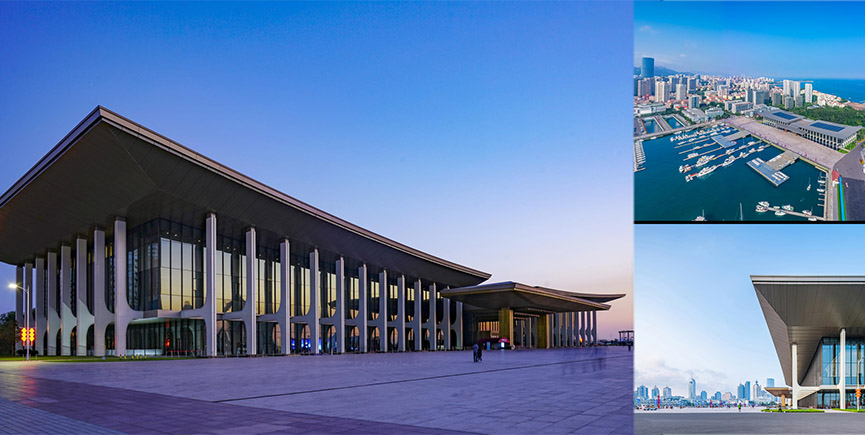

-- TR65 Standing Seam Roofing System Project Cases of Qingdao International Conference

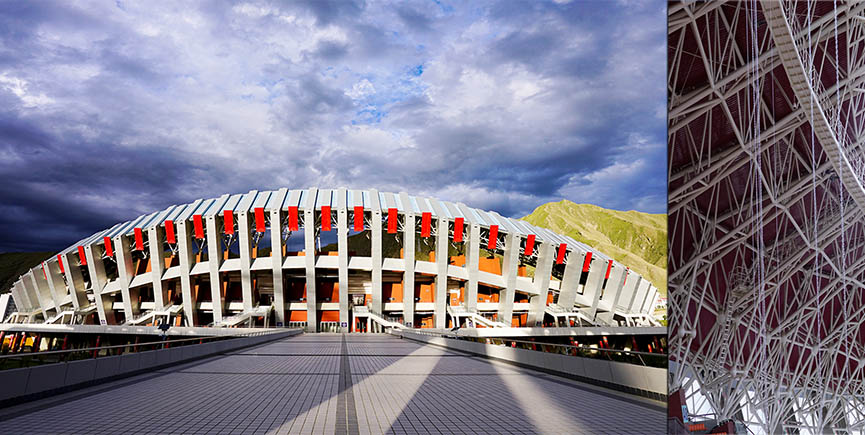

-- TR65 Standing Seam Roofing System Project Cases of Lhasa Culture and Sports Center

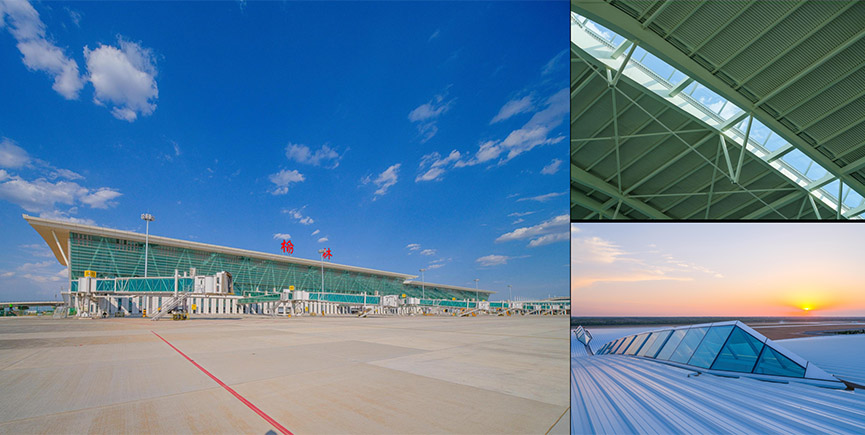

-- TR65 Standing Seam Roofing System Project Cases of Yulin Airport

-- TR65 Standing Seam Roofing System Project Cases of Jinan Yaoqiang Airport
