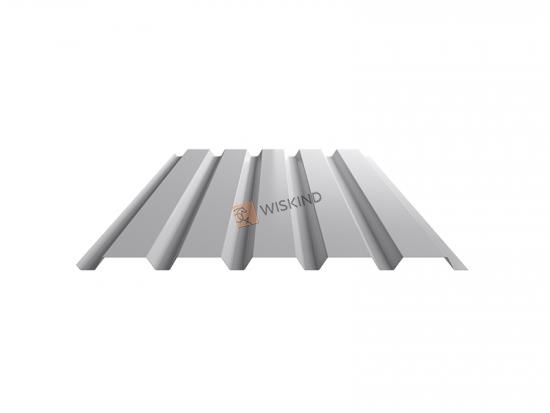

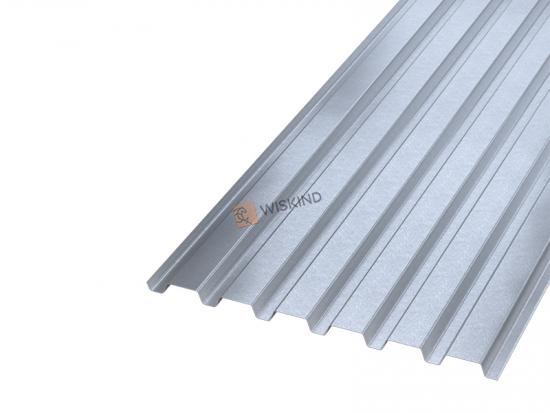

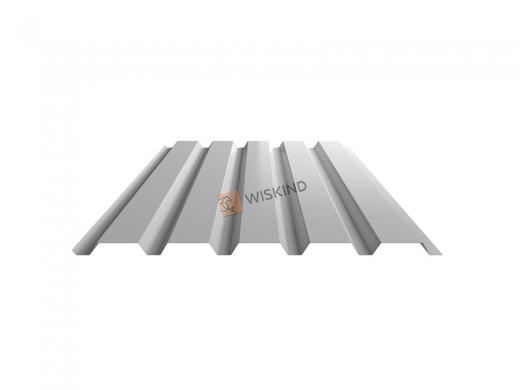

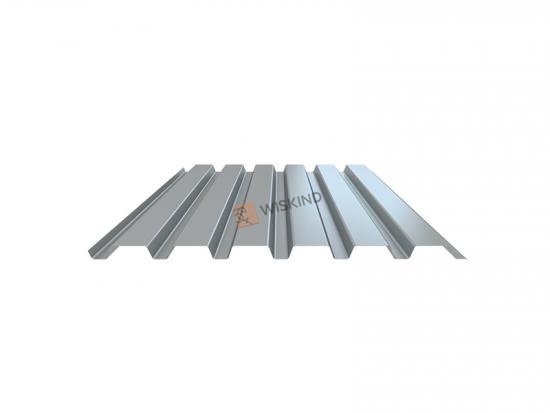

W38 Corrugated Metal Roof Bottom Plate For Flexible Waterproof System

W38 Corrugated Metal Roof Bottom Plate is a Single-ply Roofing Systems for Flexible Waterproof System.As a seamless combination of hardness and softness,it is widely used in the bottom support part of the flexible roof of the roof, and because of its unique shape, it is also widely used in the decoration of the walls.
  • Payment:

    TT/LC
  • Product Origin:

    Shandong Province, China
  • Color:

    Customized as your request
  • MOQ:

    500 square meters
  • Shipping Port:

    Qingdao Port, China
  • Lead Time:

    20-30s days after receiving your deposit
  • Product Details

1 Product Parameters:

Name of Product

W38

Raw material width(mm)

1250

Length(mm)

1000

Thickness(mm)

0.8-1.2

Color

Customed

Material

Color-coated Steel Sheets

2 Product Characteristics:

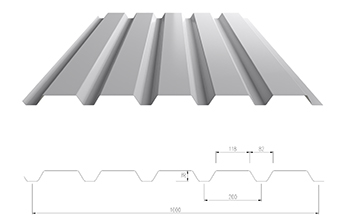

W38 Product Details

-WR38 (YX38-200-1000) is a steel floor (roof deck) specially used for single-layer waterproof roof, which is placed on the roof purlin.
-The crest spacing of WR38 is 200, which is compatible with the size of the roof insulation board; the width of the roof platform is large, which can give full play to the compressive performance of the insulation board and improve the flatness; at the same time, it is also compatible with various coil fastener connection methods.
-It is pressed by ordinary galvanized steel sheet with a thickness of more than 0.75mm, and the width of the sheet is 1m (the largest width in the roofing floor product category), which helps to speed up the installation and reduce the installation cost.
-Connected with purlins by self-drilling screws, it can also be used as a safe working platform for roofing construction.
-According to different parts of the standard configuration of the same material edge trim.

-W38 is a steel bottom plate specially designed for single-ply  waterproof roofs.
-Made of galvanized steel sheet above S250.
-The large wave crest is suitable for combination with hard insulation materials and flexible waterproof membranes, so as to form a  complete wind-resistant and waterproof roofing system.
-While speeding up installation, function as a safety work platform  for roof construction.
-Purlin spacing can be enlarged under the same load to make full use  of its excellent cross-sectional features.
-Obtained FM certificate of the US, and CE certificate of the EU.

3 Product Certifications:

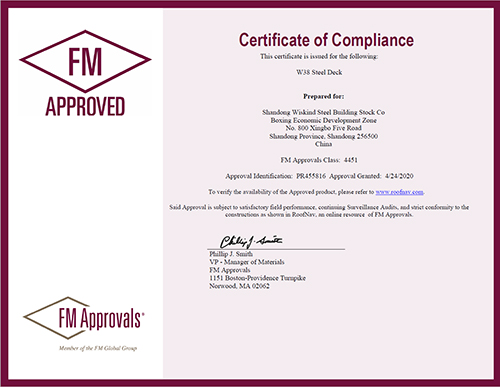

W38 Product FM Approvals


4 W38 Project Cases—A Unique Study of Architectural Aesthetics:

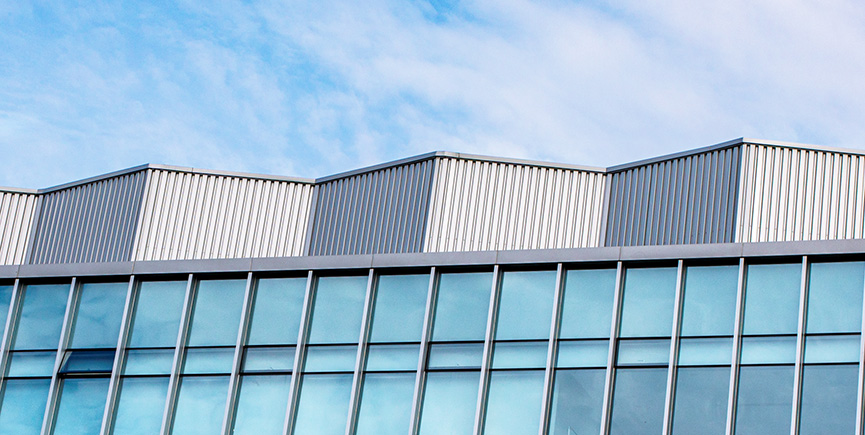

W38 Product Project Cases1

--W38 Product Project Cases of Wiskind Innovation Center

The clean tones vaguely reveal a restrained texture. The surface of the metal plate is coated with Huicai®, which reduces the magnifying effect of the surface flatness when the sun is exposed to the west, effectively reduces the light pollution of the building, and highlights the elegant texture of the building surface. It brings out the elegance and solemn beauty of the building.

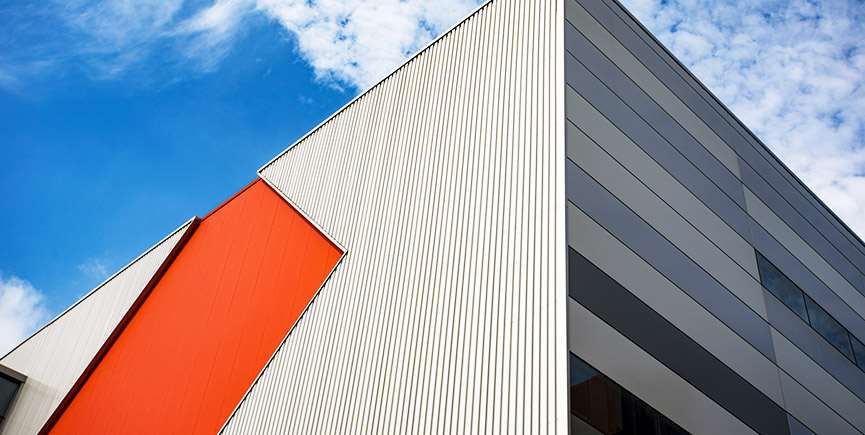

W38 Product Project Cases2

--W38 Product Project Cases of Wiskind Innovation Center

The W38 roof bottom plate is applied to the wall surface, and the concave and convex characteristics of the plate type are used together with the bending parts to present obvious corners and create a dislocation three-dimensional feeling.
The rhythm of metal changes complements the light and climate, giving the industrial site a rich visual effect.

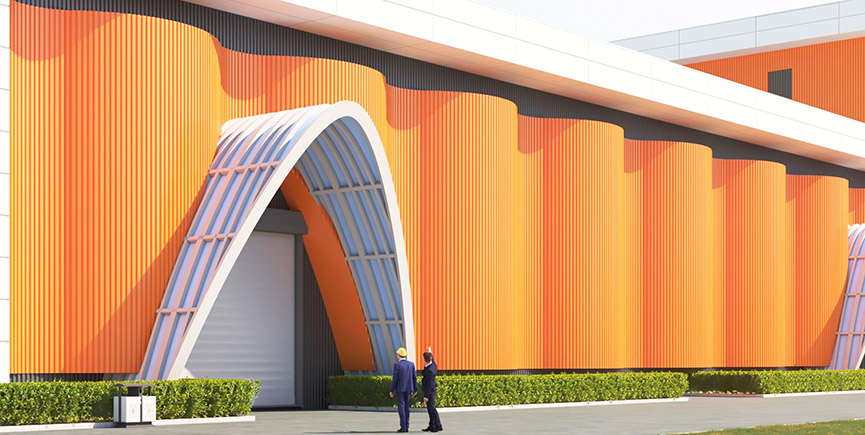

W38 Product Project Cases3

--W38 Product Project Cases of Wuhan Qianye Engineering Technology Co., Ltd.

The vertical profiled panels shape the light industrial feel of the factory building and obscure the general volume of the building. The interweaving and changing of light, shadow and space presents a rich emotional color, which makes the building and people establish a dialogue that directly touches the soul.
The orange-red W38 presents a flag-like extension change in shape, along with the change of metal light and shadow, and at the same time combined with the horizontal and vertical seams, which clearly represent the strong temperament of the four tongues, forming a style of rigidity and softness, enriching the visual effect.
