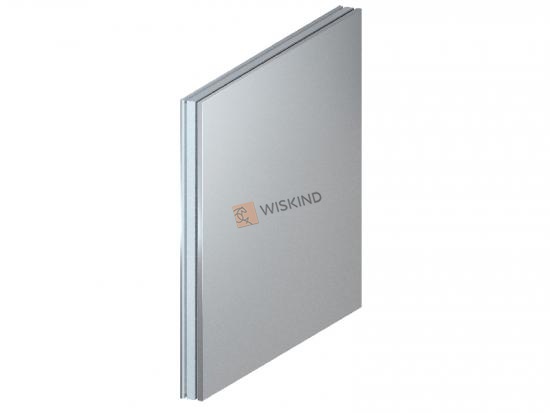

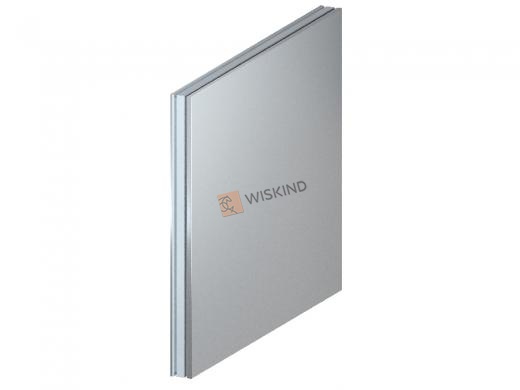

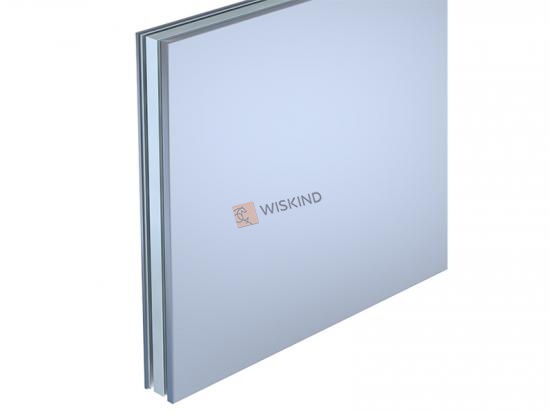

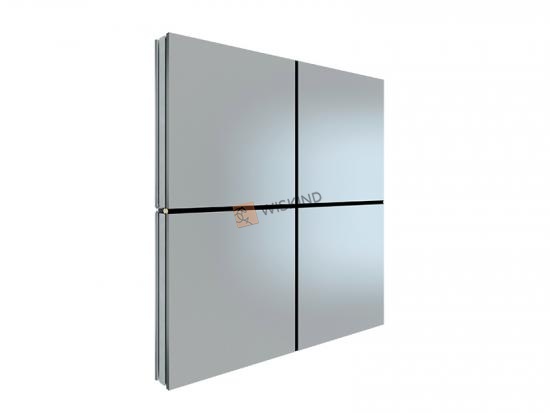

1 Product Parameters:
Steel Outer Layer
|
Common T (mm)
|
Outer Panel Specs 0.6-0.8(Coated Steel Panel)
|
|
|
Inner Panel Specs 0.5(Coated Steel Panel)
|
|
Common L (mm)
|
400-8,000
|
|
Common W (mm)
|
400-1,180
|
|
Coating
|
PVDF / SRP / HDP / PE
|
Insulation Core
|
Core Material
|
High-density thermal insulation, fireproof and
|
|
|
water-repellent rock wool
|
|
VW (kg/m³)
|
≥ 100
|
|
Thickness (mm)
|
50 / 75 / 100
|
|
TC (w/m·k)
|
≤ 0.043
|
|
Fire Rating
|
Class A
|
Process
|
Profile
|
Broken Bridge Aluminum
|
|
Production Process
|
Discontinuous Production Process
|
Center Trim Treatment
|
|
Sealant
|

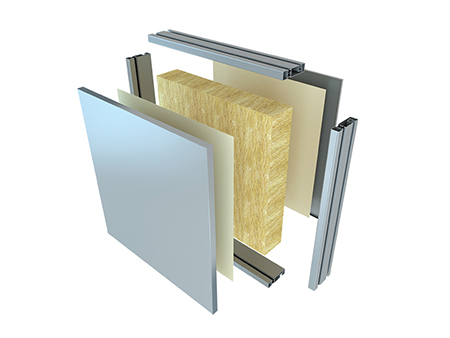

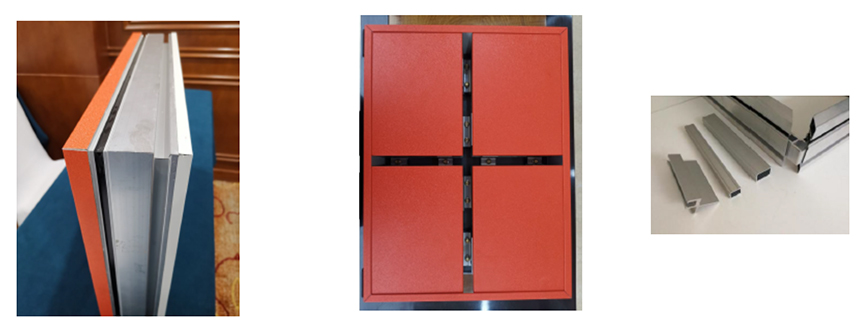

2 Product Characteristics:
The combination of the broken bridge
aluminum profile and the grade A high-density thermal insulation, fireproof and
water repellent rock wool is able to maximize thermal insulation, reduce energy
consumption, and save energy and protect the environment.
The broken bridge aluminum profile is used
as the frame to improve the flatness of panel surface.
The edge carrier of the panel is made of
broken aluminum profile, which increases the overall strength of the system.
The notch design on the four sides of the
profile is able to realize free removal and replacement of a single panel, thus
very convenient for maintenance.
The joint-free plugin design allows
simultaneous construction in any area, without being affected by other ongoing
construction.
3 Product Project Cases:

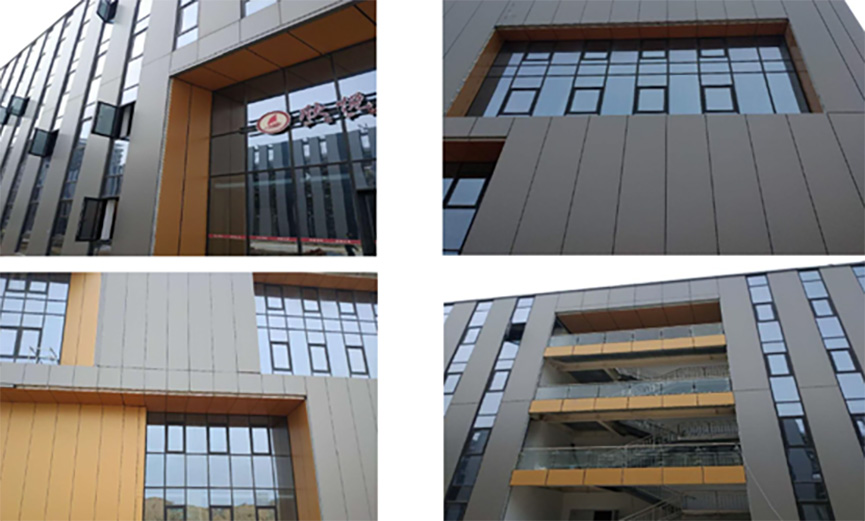

---Brilliant Insulated Curtain Wall Panel Product Cases

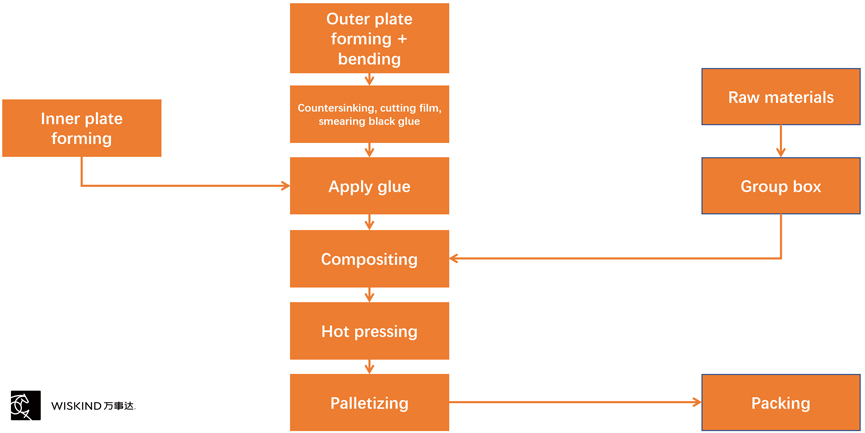

4 Production Processing Process&Production Equipment:

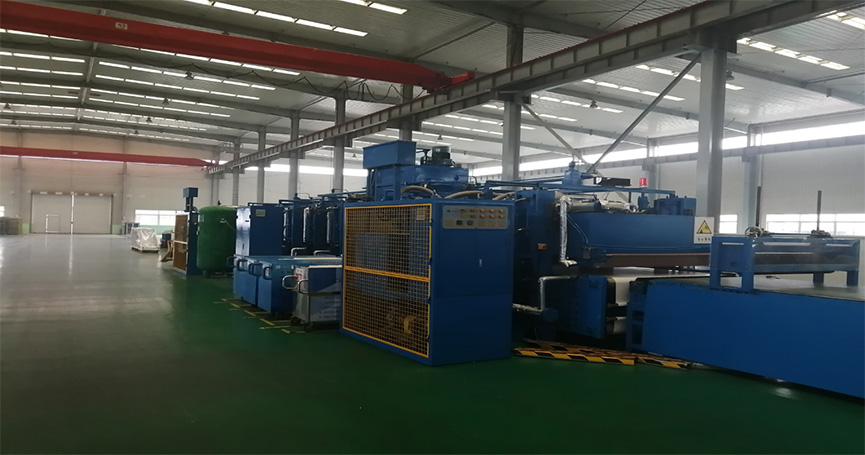

Electric feeding and discharging veneer hot
press, a well-known domestic brand, its processing size is industry-leading.
5 Product Knowledge:
1. The end edge of the finished plate is
not less than 20mm, and the end edge of the inner plate is not less than 10mm;
Plate frame keel for broken bridge aluminum; Seam joints can be treated with
sealant or EPDM strips;
2. The core material is made of
high-quality water-repellent rock wool, bulk density ≥120kg/m³, water-repellent
rate > 98%; No polyurethane side seal filling; Provide grade A combustion
performance test report;
3. Four side profile notch design, no
tongue-and-groove insertion; Suitable for electronic workshop, can be
constructed in any area at the same time, not affected by cross work; At the
same time, the realization of a single board free replacement, easy
maintenance;
4. The outer metal plate adopts 0.8mm thick
hot dip aluminized zinc plate substrate, 55% aluminized zinc AZ150g coating,
the surface paint film thickness is 25μm, the bottom paint film thickness is
5μm, the finish is high density furline coating; Inner steel plate adopts 0.5mm
thick hot dip aluminized zinc plate substrate, coating weight Z80, steel plate
finish is polyester baking paint coating.
