BUILDING FOR BEAUTY AND ETERNITY
other

Products

Home /

Steel Structure System

/

Portal Frame Steel Structure Buildings

/Metal Buildings for Logistics Storage Center
Metal Buildings Metal Buildings Metal Buildings Metal Buildings Metal Buildings

Metal Buildings for Logistics Storage Center

The materials used in Metal Buildings have the characteristics of light dead weight and high strength. The dead weight of steel structure buildings is about 30% lower than that of concrete buildings. The advantage of prefabricated steel structure - fast, due to its different construction characteristics, the construction period of steel structure is more than 50% higher than that of PC. The steel structure is light and strong, saving materials; the construction process saves energy, water and land; the material can be disassembled and recycled, and the recycling rate can reach 70%;Well-designed, sophisticated system steel structure, low cost; as labor costs continue to rise, the labor, formwork, materials and other costs of traditional concrete structures are higher than those of steel structures.

  • Payment:

    TT/LC

  • Product Origin:

    Shandong Province, China

  • Color:

    Customized as your request

  • Shipping Port:

    Qingdao Port, China

  • Lead Time：

    30s-45s days after receiving your deposi

Product Categories

New Products

  • Product Details

1 Product Parameters：

Product name

Metal Buildings for Logistics Storage Center

Main Structure

Weld H steel/ Steel Beam/Column

Sub-Structure

C/Z purlin,C/Z section steel

Roofing&Wall

Fireproof/Insulated sandwich panels or corrugated steel plate

Connect

Hot-Wleded

Lighting system

Lighting panel/aluminum alloy window/sliding window/plastic steel window/aluminum window with thermal insulation broken bridge

Ventilation System

Stainless Steel Ventilator

Walls/Roofs

Coated Corrugated Steel Sheets/Steel Sandwich Panels

Certificate

CE/ISO9001/ISO14001

Application

Workshop/Warehouse/Storage/Frame/Shed/Any Steel Structure Buildings

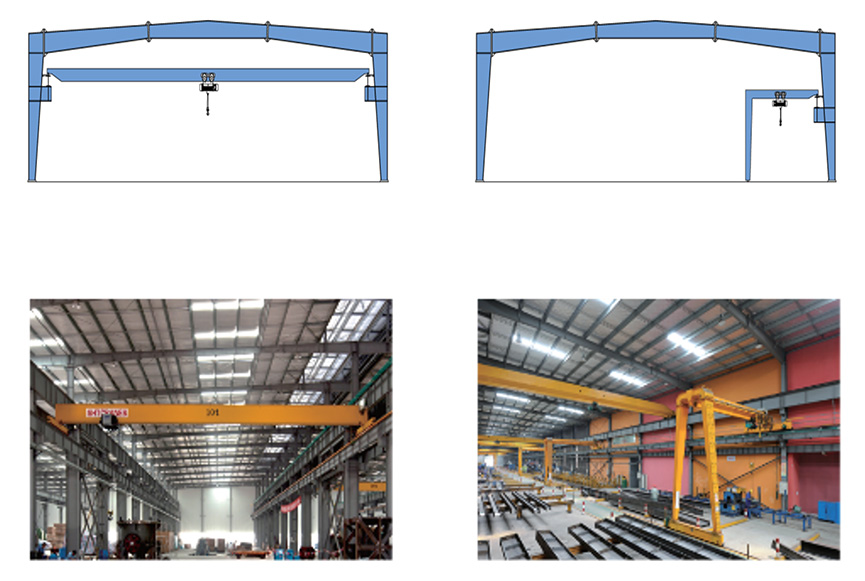

2 Portal Frame Steel Structure Systems：

Portal Frame Steel Structure Systems

The portal frame steel structure system has the characteristics of mature and reliable system and wide adaptability. The portal frame system adopts high-strength galvanized purlin, which greatly prolongs the life of the building and is the most widely used building system.

3 Different Metal Materials Used In The Envelope Systems：


Name

Ingredients

Performance description

Service life (general environment)

Fields of application

stainless steel

Contains chromium, nickel, titanium, silicon, aluminum, manganese, magnesium and other components

Beautiful surface, diversified use possibilities, corrosion resistance, high strength, high temperature resistance, fire resistance, simple maintenance, clean, high finish, good welding performance.

More than 50 years

Interior and exterior wall decoration panels, petroleum, chemical industry, water conservancy and electric power and other industries

Aluminized zinc plate

Coating composition: 55% aluminum and 43.4% zinc, 1.6% silicon composition.

Good heat resistance, corrosion resistance, good adhesion between coating and paint film, with good processing performance

10-20 years

Roofs, walls, garages, modular houses, etc

Color coated board

Coating: PE, SMP, HDP, PVDF, polyvinyl fluoride - plastic solution

Pollution-free, economical, easy to process, easy to construct

7-25 years

Walls, residential roofs, drainage ditches, downspouts, garage doors, etc

Aluminum magnesium manganese plate

Main alloying elements:

It has the advantages of light weight, high strength, corrosion resistance, good plasticity, easy processing and so on

More than 50 years

Roofing and façade materials

Manganese (1.0%-1.5%)

Magnesium (0.8%-1.3%)

Titanium zinc plate

Zinc: 99.995%, Copper: 0.08-1.0%, Titanium: 0.06-0.2%

It heals automatically after scratches, has a long service life, and does not require coating protection; It has good elongation and tensile strength, good plasticity.

0.7mm roof 3°: 80-100 years

Public buildings, high-end residential roofs, roofs, curtain walls, etc

Vertical drainage: 200 years

Metal plated


The surface is corrosion resistant and shows a corresponding metallic color

30-80 years



4 Steel Structure Production Machines：

Electroslag Welding Equipment


Electroslag Welding Equipment (Box Column)

Gantry type electroslag welding and Floor type electroslag welding

5 Logistics Storage Center Project Cases：

Logistics Storage Center Project Cases1

--Logistics Storage Center Project Cases of Dangdang Bit Logistics (Meishan) Co., Ltd.

Logistics Storage Center Project Cases2

--Logistics Storage Center Project Cases of Jiuxian.com North China Logistics Warehouse

Logistics Storage Center Project Cases3

--Logistics Storage Center Project Cases of Tianjin SEG Haijing Co., Ltd.5


Hot Tags: Metal Buildings Metal Storage Buildings Steel Warehouses 30x50 Metal Buildings Prefabricated Metal Buildings Prefab Warehouses
Leave a message
If you are interested in any of our products, please feel free to contact us. We are looking forward to your cooperation.
Subject : Metal Buildings for Logistics Storage Center

Related Products

Metal Workshop Buildings

Metal Workshop Buildings for Food Processing Plant

Metal Structures Workshops,are buildings that use an industrialized production method to build a building, and are also buildings that prefabricate some or all of the components of the building in a factory, and then transport it to the construction site to assemble the components through a reliable connection method. It has the characteristics of convenient and quick installation and construction, light weight, large span, good wind and earthquake resistance, good thermal insulation, sound insulation and other outstanding features.

Pre engineered Structural Steel Buildings

Pre engineered Structural Steel Buildings for Electronics Industry

Pre-engineered Structural Steel Workshops,as steel structure buildings,have the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy,beautiful appearance, short construction time, good effect of insulation, long using life, space efficient, good seismic performance, flexible layout, etc.

Heavy Steel Structures Buildings

Heavy Steel Structures Buildings for Chemical Plant

Steel Structures Buildings can be used in some Chemical Plants, portal steel structure frame is generally composed of roof structure, column, crane beam, brake beam, all kinds of support and wall frame and other components of the space system.

Steel Framing Prefab Workshops&Warehouses

Steel Framing Prefab Workshops And Warehouses for Machinery Factory

Steel Framing Prefab Workshop Warehouse steel building system mainly refers to the main load-bearing components are composed of steel. Including steel columns, steel beams, steel structure foundations, steel roof trusses, and steel roofs. Also the metal cladding systems, including wall system, roof system, lighting system, ventilation system, door and window accessory systems.
