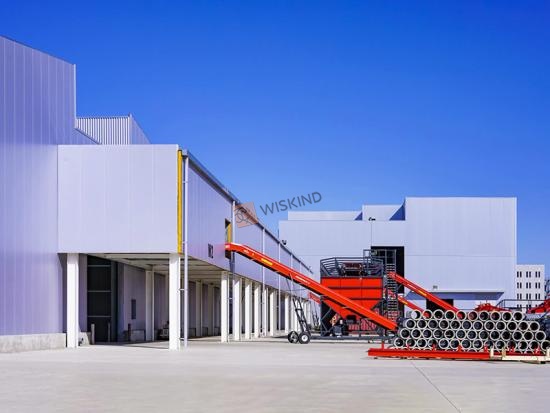

Metal Workshop Buildings for Food Processing Plant

1 Product Parameters：

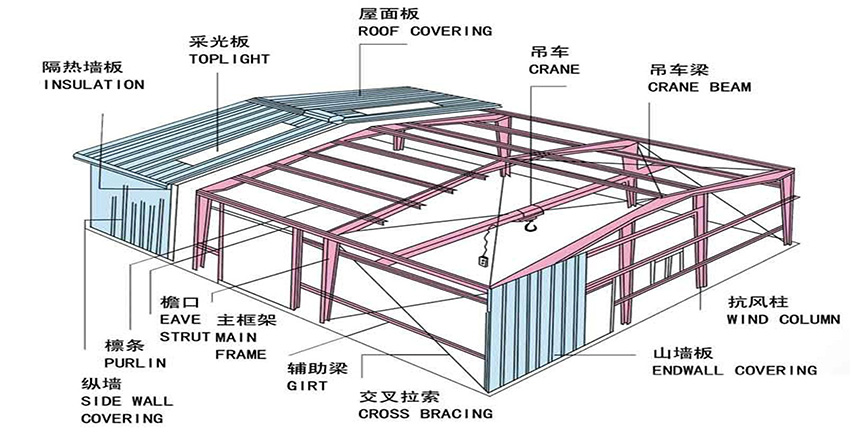

2 The Main Components Of The Portal Frame：

1. Main structure
The beam-column member is the main load-bearing member of the factory building. It bears the load on the roof, crane beam, wall, and the wind load from the gable, and transmits these loads to the foundation. Low-alloy structural steel is used, and welded H Section steel, corrugated web members, etc.
2. Crane beam
The crane beam is placed on the corbel extending from the column, which bears the crane's own weight, the large lifting capacity of the crane and the punching force generated when the crane brakes.
3. Secondary structure - support system, purlin system
The support system includes two parts: inter-column support and roof support. Its function is to strengthen the overall rigidity and stability of the workshop structure, and mainly transmit horizontal wind loads and punching force generated by cranes.
Z-type or C-type cold-formed thin-walled purlins and wall beams, the spacing between purlins and wall beams is generally determined by the plate type and specifications of the outer protection, and must be determined after mechanical calculation
4. Envelope system
The envelope system is composed of roof, exterior walls, doors, windows, etc. The roof and exterior walls form an interior space, which can shield the external harsh weather and also play a role in sound insulation, thereby ensuring the safety of users. and privacy. Doors are passages that connect inside and outside, windows allow light, ventilation and open views, and interior walls divide the interior of the building into different units.

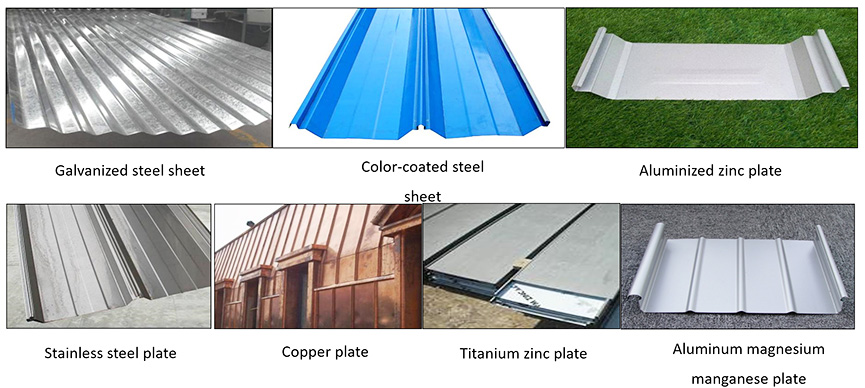

3 Envelope System Metal Raw Materials：

4 Steel Structure Production Machines：

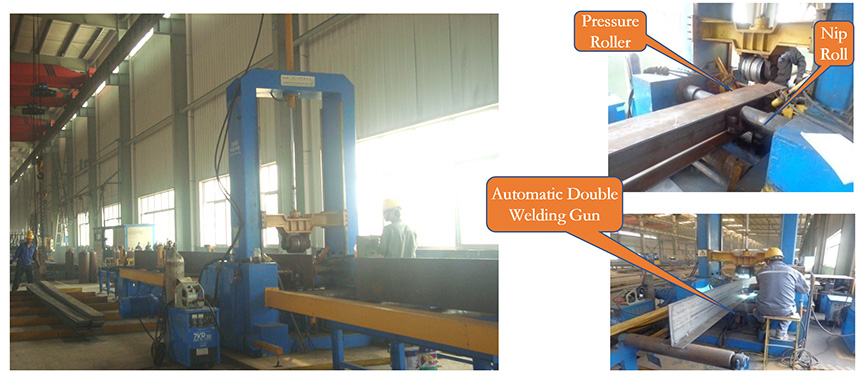

H-beam assembly machine

The assembly machine is a commonly used H-beam assembly and forming equipment. The auxiliary materials used are carbon dioxide or mixed gas, welding wire, and the automatic intermittent spot welding method is operated by personnel.

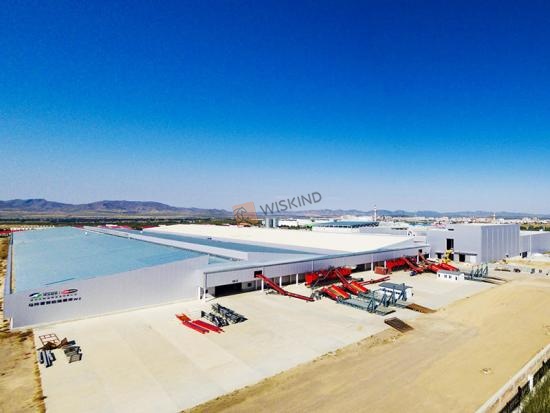

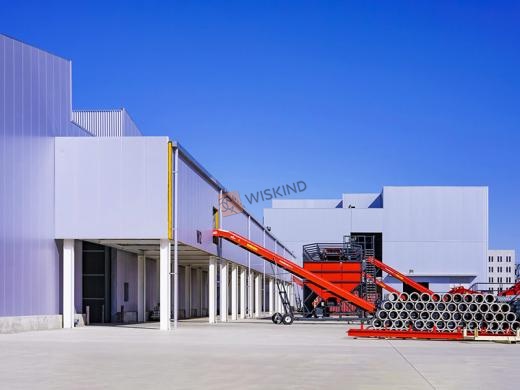

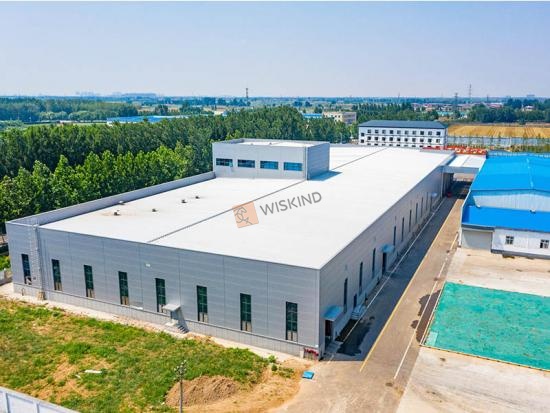

5 Food Processing Plant Project Cases：

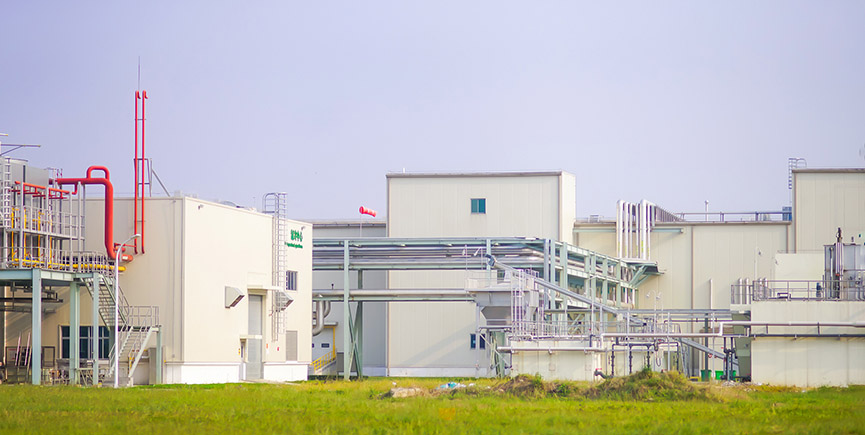

--Food Processing Plant Project Cases Of Hormel Foods Jiaxing Base

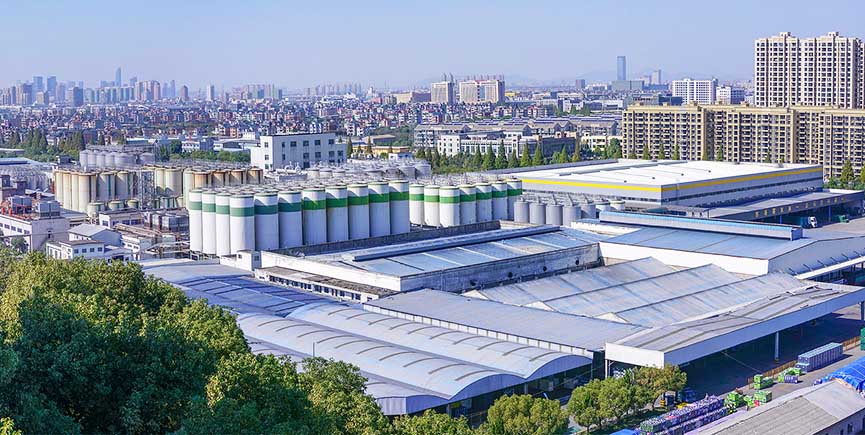

--Food Processing Plant Project Cases Of China Resources Snow Beer (Wuhan) Co., Ltd.

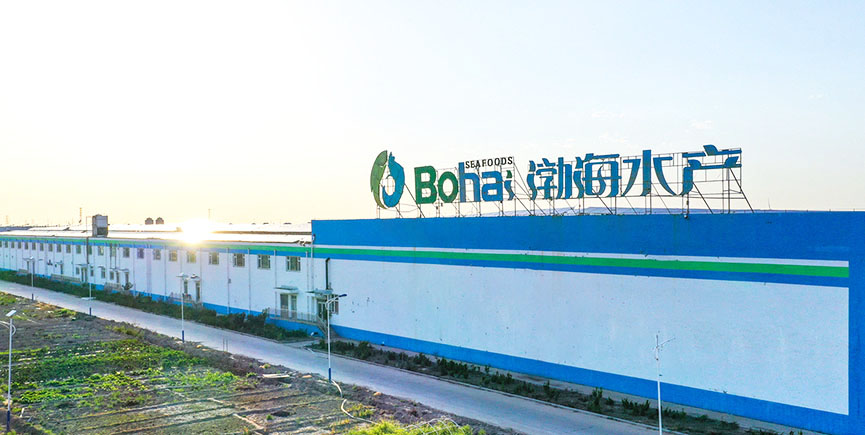

--Food Processing Plant Project Cases Of Wudi County Bohai Sea Products

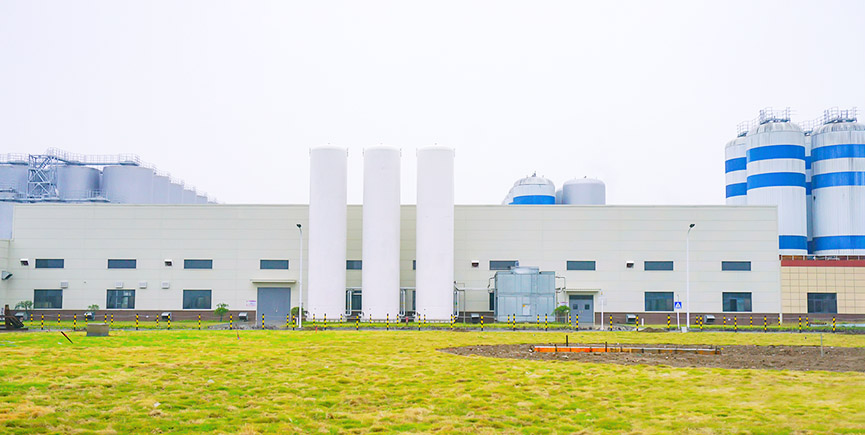

--Food Processing Plant Project Cases Of Xiaoshan Snow Beer
