950mm Snap Cap Type Rock Wool Glass Wool Roof Sandwich Panel

1 Product Parameters：

2 Product Characteristics：

High-quality raw materials are selected to produce the non­combustible high-density water-repellent rock wool. After high- temperature melting and high-speed centrifugation, the materials, high-quality basalt and diabase, are drawn into fibers, and then added with a small amount of additives, such as binder, dust-proof oil, and water repellent. The product features excellent fire resistance, great sound insulation & heat insulation performance, and can be recycled continuously. Non-combustible glass wool boasts a light weight, low thermal conductivity, great sound absorption/waterproof performances, corrosion resistance, outstanding chemical stability, good processability, and superior economic applicability.

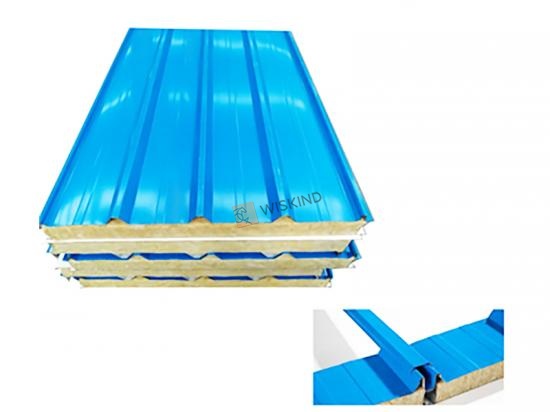

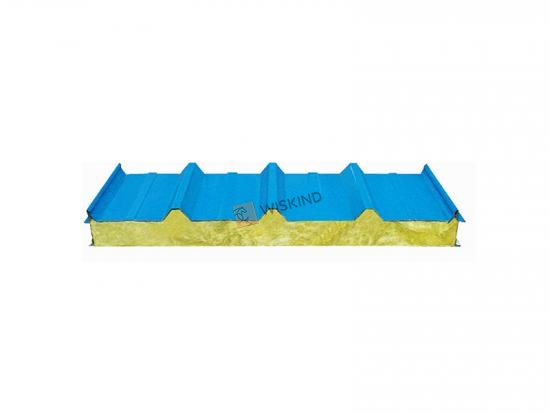

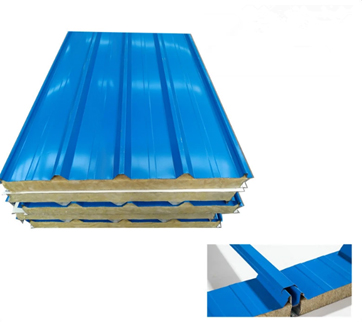

Wiskind uses the three-wave crest design on the outer surface enhances the strength and load-bearing capacity of the roof panel. The metal cap design is used at the connection, and the hidden nail has excellent waterproof performance.

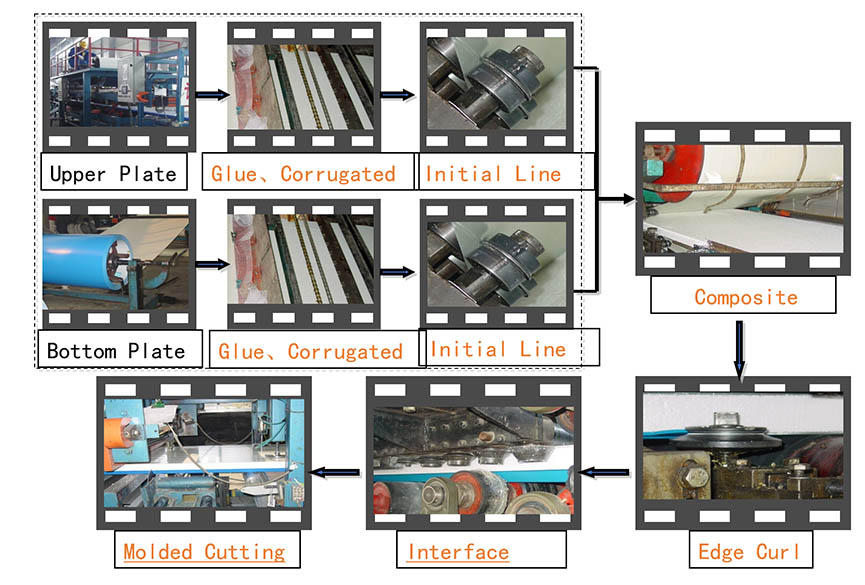

3 Production Process：

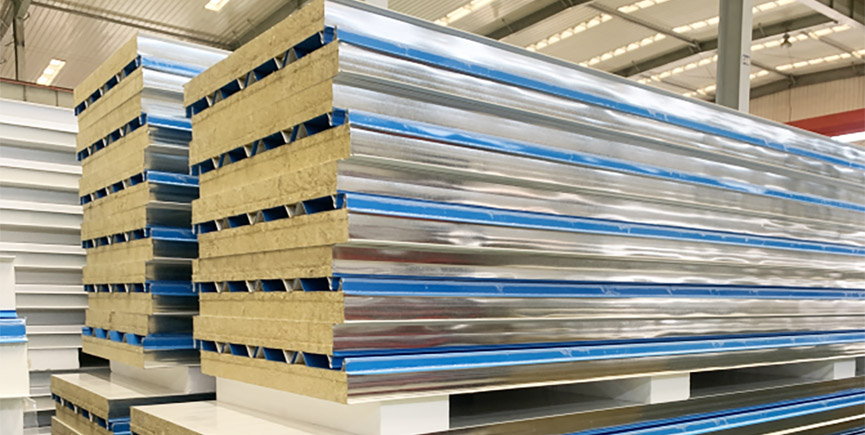

4 Product Packing&Shipping：

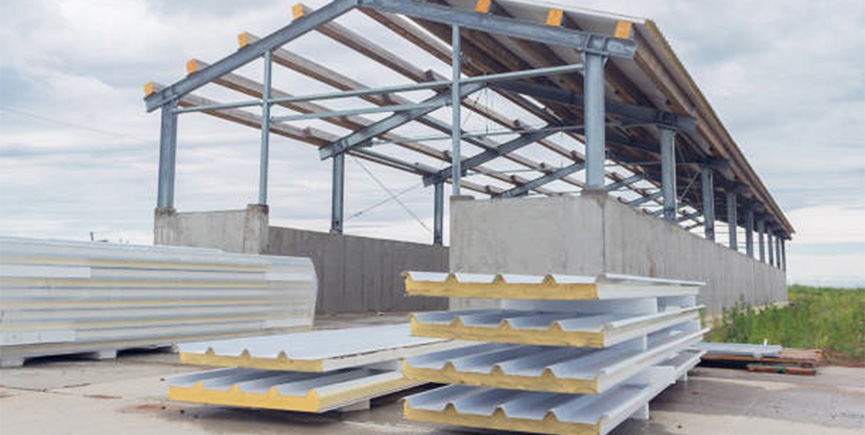

5 Product Project cases：

6 Product Knowledges：

Rock wool is a type of mineral wool. Rock wool is a fluffy short fiber cotton made by high-strength and high-temperature injection of natural rocks such as basalt, diabase, dolomite, iron ore, bauxite, etc. After processing, it can be made into various products such as plates, pipes, felts, belts, and papers, which can be used for thermal insulation, fire protection, sound absorption, and shock resistance of construction and industrial equipment, pipes, and kilns.

production material

Main raw materials: basalt or lime greenstone, blast furnace slag, dolomite or limestone, etc.;

Main fuel: coke (cupola) or electrode (electric furnace) heating and melting

Main accessories for rock wool production

Bonding material: thermosetting phenolic resin;

Additives: de-dust oil

Water repellent (silicone emulsion silicone)

Coupling agent (silane silane)

Ammonia, etc.
